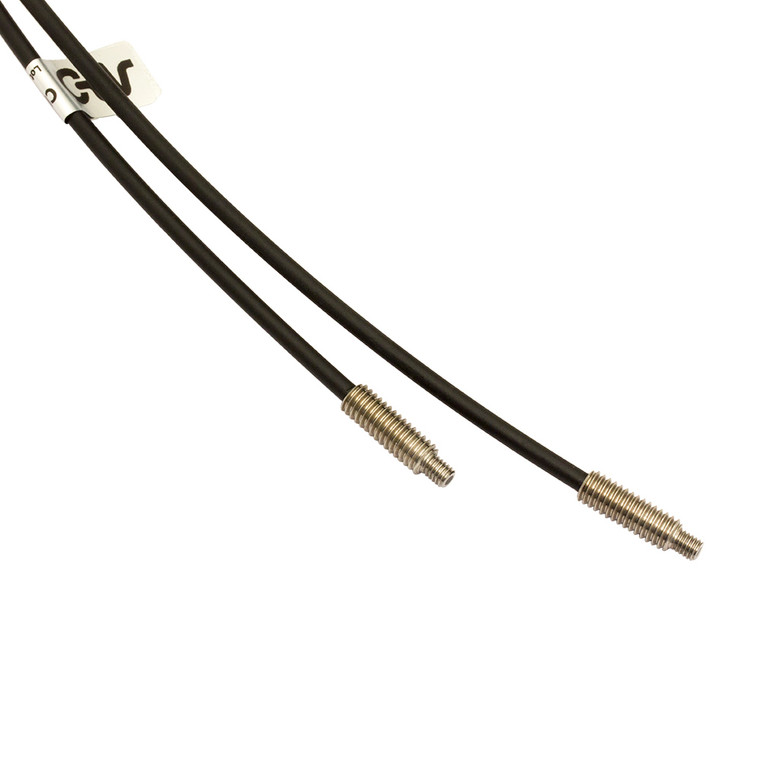

Datasensing CF/RB3-20 Sensors
Datasensing
$82.23
The Datasensing CF/RB3-20 Sensors are designed for precision and versatility, featuring a 2-meter plastic optical fibre with an axial optic position. These sensors are equipped with a wide range of models, including ultra-slim designs for detecting small objects and options for long-distance sensing. The spiral tube design enhances handling flexibility, while the cutting fibre units offer adaptability for various applications. With a robust IP67 protection degree, these sensors are built to withstand harsh environments, operating efficiently in temperatures ranging from -40°C to +55°C. The nickel-plated brass head ensures durability, and the 1 mm Ø optical fibre core provides reliable performance. Compatible with SSF, FS1, FX3, and FX4 series, these sensors offer varying distance capabilities, from 120 mm to 700 mm, depending on the series. Additional accessories, such as the AF/ER9, can be ordered separately to enhance functionality. CE approved, the Datasensing CF/RB3-20 Sensors are an ideal choice for applications requiring precise and reliable optical sensing solutions.
- Distance with SSF:
- 120 mm
- Distance with FS1:
- 120 mm
- Distance with FX3:
- 700 mm
- Distance with FX4:
- 700 mm
- Distance with F1R:
- 150 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 2
- Ø optical fibre core:
- 1 mm
- Head shape:
- M4
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Accessories to be ordered separately:
- AF/ER9
- Mechanical Protection:
- IP67
