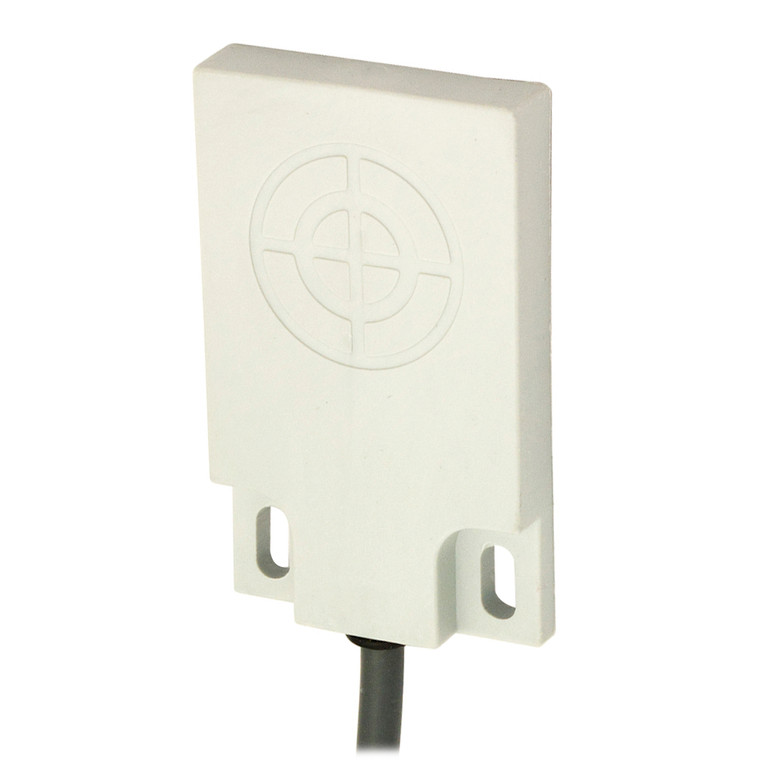

Datasensing CQ50/AP-3A Sensors
Datasensing
$56.35
The Datasensing CQ50/AP-3A Sensors are high-performance capacitive sensors designed for precise detection tasks. Featuring a compact cubic design, these sensors are housed in durable flat polycarbonate plastic, ensuring robust performance in various industrial environments. With a nominal sensing distance of 7mm, they operate on a DC supply voltage ranging from 10 to 30Vdc, making them versatile for different applications.
These sensors are equipped with a PNP NO output type, providing a reliable switching frequency of 10Hz. They are engineered with a no-load supply current of ? 10mA and a load current capacity of ? 50mA, ensuring efficient energy consumption. The sensors boast a low output voltage drop of 1.5Vmax at IL=50mA, and a leakage current of ? 100µA, enhancing their operational efficiency.
Designed with user safety in mind, the CQ50/AP-3A Sensors include short-circuit protection with an autoreset feature, reverse polarity protection, and impulsive overvoltage protection. The sensors are shielded for easy mounting and come with a 2m PVC cable for convenient connectivity.
With a robust noryl housing and active head material, these sensors are built to withstand operating temperatures from 0 to 60°C and storage temperatures from -30 to 75°C. They are CE approved and comply with EMC compatibility standards IEC 60947-5-2, offering a high degree of protection with an IP67 rating. The compact dimensions of 50x30x7mm and a weight of 70g make them an ideal choice for space-constrained applications.
- Nominal sensing distance:
- 7mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- NO
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 10Hz
- Operating Voltage:
- 10..30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ?50mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- 1,5Vmax @ IL=50mA
- Max ripple content:
- ?10%
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Shielded
- Weight:
- 70g
- Housing Material:
- noryl
- Connections:
- 2m PVC cable
- Active Head Material:
- noryl
- Storage temperature:
- -30°C +75°C
- Diameter/Dimension:
- 50x30x7mm
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
