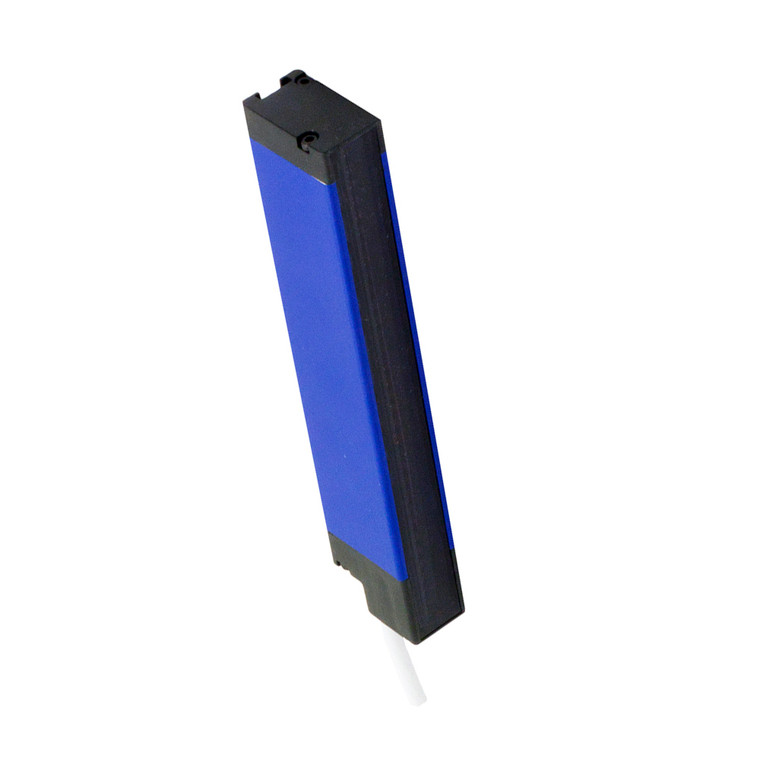

Datasensing CX2E0RA/10-048V Sensors

The Datasensing CX2E0RA/10-048V Sensors are advanced area sensors designed for precision and reliability in various industrial applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 10mm and a control height of 480mm, with a nominal sensing distance ranging from 0.3 to 6 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring accurate detection even in challenging environments. Equipped with both digital and analogue outputs, including NPN, PNP, and a mix of digital PNP and analogue voltage output (0..10V), these sensors provide versatile integration options. The teach-in adjustment feature allows for easy sensitivity calibration, while the blanking function enhances operational flexibility. With a switching frequency of 23.5Hz and an operating voltage range of 16.8 to 30Vdc, the sensors are designed for efficient performance. Constructed with a robust aluminium housing and PMMA active head material, the sensors are built to withstand harsh conditions, offering an IP67 degree of protection. They are equipped with LED indicators for easy status monitoring and include short-circuit and reverse polarity protection for enhanced safety. The sensors are compliant with IEC EN 60947-5-2 standards for interference to external light and impulsive overvoltage protection. Ideal for applications requiring precise object detection, the Datasensing CX2E0RA/10-048V Sensors come with a ST151 fixing kit for easy installation. With approvals from CE and cULus, these sensors are a reliable choice for ensuring operational efficiency and safety in your industrial processes.
