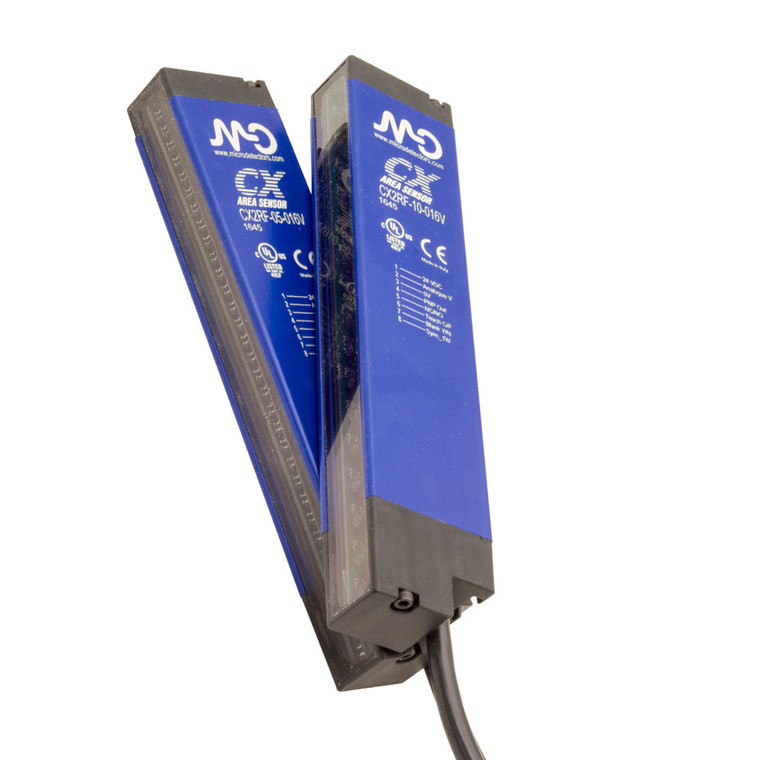

Datasensing CX2E0RA/10-064VTB Sensors
Datasensing
$1,747.36
The Datasensing CX2E0RA/10-064VTB Sensors are designed for precision and reliability in industrial applications. Featuring a nominal sensing distance of 0.3 to 6 meters, these area sensors utilize a one-cable synchronization system with a beam spacing of 10mm and a controlled height of 640mm. They are capable of detecting objects as small as Ø 10mm with 65 parallel beams, including a top beam for enhanced coverage. The sensors offer a teach-in by wire sensitivity adjustment and operate on an emitter/receiver principle, providing both positive and negative slope output functions. With an operating voltage range of 16.8 to 30Vdc, they support a switching frequency of 18.1Hz and are equipped with short-circuit and reverse polarity protection. The robust aluminium housing ensures durability, while the IP67 mechanical protection rating guarantees resistance to dust and water. The sensors are equipped with LED indicators for easy status monitoring and come with a ST151 fixing kit for convenient installation. Suitable for a wide range of environments, they operate efficiently within temperatures of -10°C to +55°C and are compliant with CE and cULus standards.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 10mm
- controlled height:
- 640mm
- minimum detectable object:
- Ø 10mm
- number of rays:
- 65
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- 0,,,10V + 4,,,20mA
- Output Function:
- positive/negative slope
- Switching frequency:
- 18,1Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 1500g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 649x36x20
- Operating Temperature:
- -10°C + 55° C (without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
