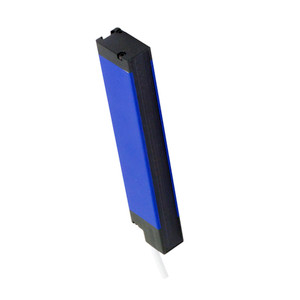

Datasensing CX2E0RB/05-048V Sensors

The Datasensing CX2E0RB/05-048V Sensors are designed for precise area monitoring with a compact and robust build. Featuring a 97-ray configuration, these sensors offer a nominal sensing distance ranging from 0.3 to 3 meters, with a beam spacing of 5mm and a controlled height of 480mm. They are capable of detecting objects as small as Ø 5mm, making them ideal for high-precision applications. The sensors utilize an emitter/receiver function principle and provide both NPN and PNP output types with NO/NC output functions. They operate at a switching frequency of 12.3Hz and require an operating voltage between 16.8 and 30Vdc. With a no-load supply current of ?330mA and a load current of <100mA, these sensors are energy-efficient. They also feature a low leakage current of ?10µA and an output voltage drop of <1.5V at 100mA. Built with durability in mind, the sensors are housed in aluminum with an active head made of PMMA, ensuring a long lifespan even in challenging environments. They are equipped with LED indicators for easy status monitoring and offer short-circuit and reverse polarity protection. The sensors are designed to withstand shocks and vibrations as per IEC EN 60947-5-2 standards and are protected against impulsive overvoltage. With a degree of protection rated at IP67, these sensors are suitable for use in harsh conditions, operating within a temperature range of -10°C to +55°C. They come with an ST151 fixing kit for easy installation and are approved by CE and cULus, ensuring compliance with international safety standards. The sensors are also EMC compatible with IEC 60947-5-2, providing reliable performance in environments with potential electromagnetic interference.
