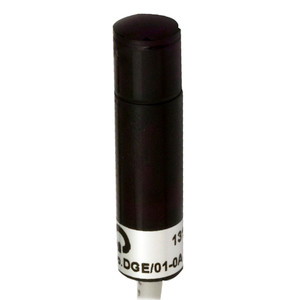

Datasensing DGE/00-1B Sensors
Datasensing
$76.62
The Datasensing DGE/00-1B Sensors are designed for precision and durability in challenging environments. These photoelectric sensors feature a nominal sensing distance of 60 meters, with a beam angle of ±5°, making them ideal for long-range detection. The emitter operates on infrared technology, ensuring reliable performance even in the presence of external light interference up to 20,000 lux.
Constructed with an anodized aluminum housing and a glass active head, these sensors boast a robust design with an IP68 degree of protection, suitable for harsh conditions. The compact dimensions of Ø 10mm x 46mm allow for easy integration into various applications, while the 10m PVC cable provides flexible connectivity options.
The DGE/00-1B sensors offer versatile functionality with AC or DC operating voltage, relay output, and relay alarm output. The unit includes LED indicators for alignment, operating voltage, alarm, and output state, ensuring easy monitoring and maintenance. Additionally, the double timer with independent adjustments and sensitivity adjustment features provide enhanced control and customization.
Approved with CE and conforming to EMC directive EN60947-5-2, these sensors guarantee compliance and reliability. With an operating temperature range of -20°C to +60°C, the DGE/00-1B is engineered to perform consistently in extreme conditions, making it an excellent choice for industrial applications requiring high precision and resilience.
- Nominal sensing distance:
- 60m
- Beam angle:
- ± 5°
- Function Principle:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- Anodized alluminium
- Connections:
- 10m PVC cable
- Active Head Material:
- glass
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
