Datasensing DGR/DP-3A Sensors

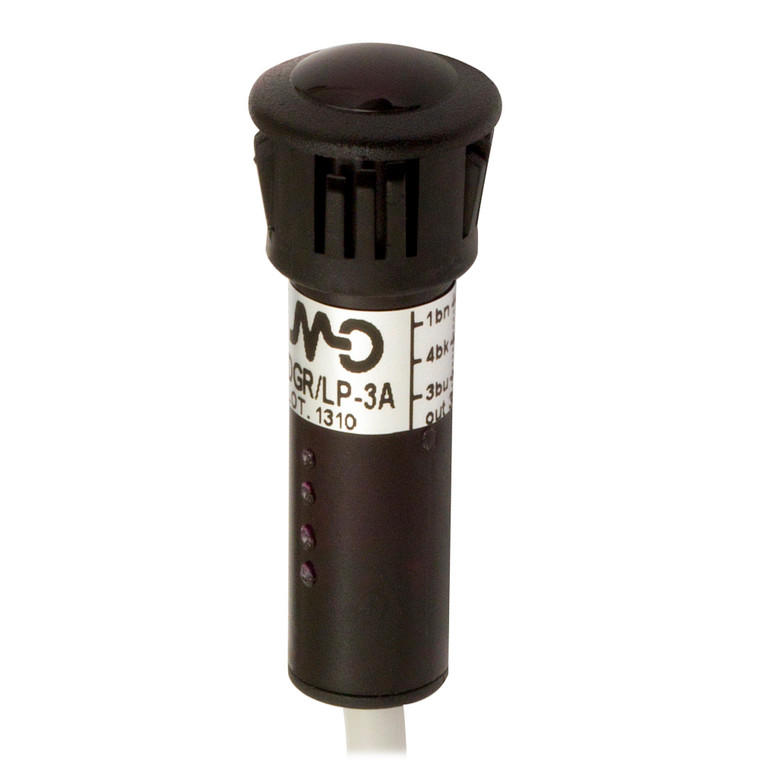

The Datasensing DGR/DP-3A Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. Encased in a robust Ø 10 mm plastic housing with a length of 41 mm, these sensors feature an irreversible spring latch fixing with a Ø 13 mm hole for secure installation. Equipped with a yellow LED status indicator, the receiver-only design ensures complete protection against electrical damages, boasting an IP67 protection degree for enhanced durability in harsh environments. With a nominal sensing distance of 2 meters and a thermal drift of Sr ?10%Sr, these sensors operate efficiently without the need for sensitivity adjustment. The axial optic position and PNP Don output type provide reliable performance, with a switching frequency of 40Hz and a rapid response time of 1.25ms. Operating within a voltage range of 15…37 VDC, the sensors maintain a no-load supply current of ? 10mA and a load current of ?30mA, ensuring energy efficiency. The DGR/DP-3A Sensors are equipped with advanced features such as short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, making them resilient against electrical disturbances. They can withstand interference from external light up to 20,000 lux and are approved with CE and EMC compatibility (EN 60947-5-3). Designed to endure shocks and vibrations (Vibration IEC 60068-2-6 / Shock IEC 60068-2-27), these sensors are ideal for demanding industrial applications. The sensors come with a 5-meter PVC cable for easy connectivity and are constructed with high-quality materials, including a PC housing, POM fixing ring, and ABS cable exit. They operate within a temperature range of -25°C to +70°C (without freeze), ensuring reliable performance in various environmental conditions. With a weight of 210g, the Datasensing DGR/DP-3A Sensors are a robust and efficient solution for your sensing needs.
