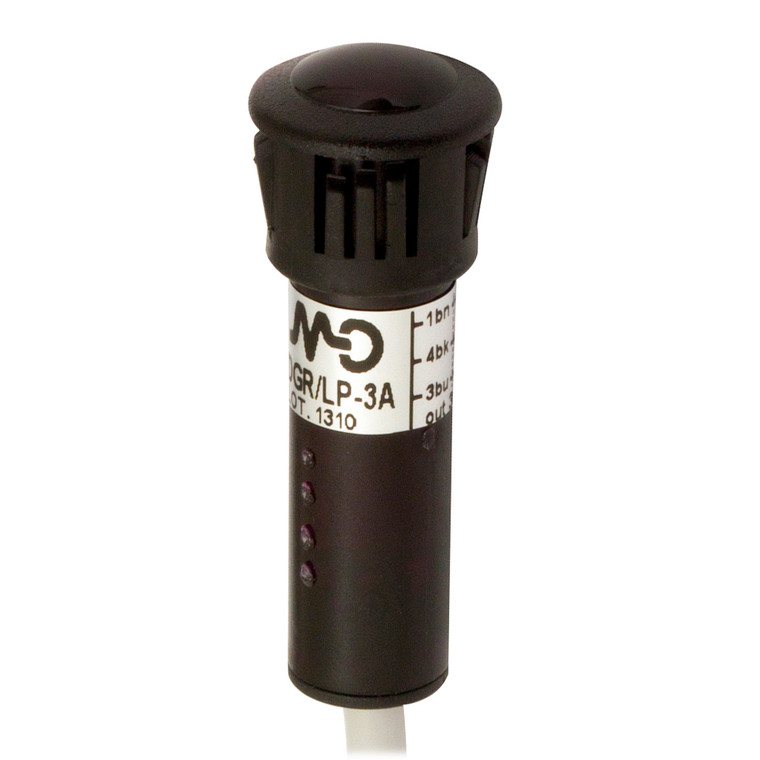

Datasensing DGR/LP-3A Sensors
Datasensing
$75.59
The Datasensing DGR/LP-3A Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. Encased in a robust Ø 10 mm plastic housing with a length of 41 mm, these sensors feature an irreversible spring latch fixing with a Ø 13 mm hole for secure installation. Equipped with a yellow LED status indicator, they provide clear output status visibility. Engineered for complete protection against electrical damages, they boast an IP67 protection degree, ensuring durability in harsh environments.
With a nominal sensing distance of 2 meters and a thermal drift of Sr ?10%Sr, these sensors deliver consistent performance without the need for sensitivity adjustment. Operating on a supply voltage range of 15 to 37 VDC (10 to 30 VDC for the EA version), they are CE approved and compatible with EN 60947-5-3 EMC standards. The sensors offer a PNP Lon output type with a switching frequency of 40Hz and a rapid response time of 1.25ms, making them ideal for fast-paced applications.
The DGR/LP-3A Sensors are designed with user safety in mind, featuring short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. They can withstand interference from external light up to 20,000 lux and operate efficiently within a temperature range of -25°C to +70°C, without freezing. The sensors are lightweight at 210g and come with a 5-meter PVC cable for easy connectivity. Built to endure shocks and vibrations, they comply with Vibration IEC 60068-2-6 and Shock IEC 60068-2-27 standards, ensuring reliable performance in demanding conditions.
- Nominal sensing distance:
- 2m
- Thermal drift of Sr:
- ?10%Sr
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Notes:
- (EG=4)
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP Lon
- Output Function:
- Lon
- Switching frequency:
- 40Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 15 37VDC
- No-Load supply current:
- ? 10mA
- Load current:
- ?30mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=30mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Output status)
- Time delay before availability:
- ? 100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 20.000lux
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 210g
- Housing Material:
- PC housing / POM fixing ring / ABS cable exit
- Connections:
- 5m PVC cable
- Active Head Material:
- PC
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-3
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
