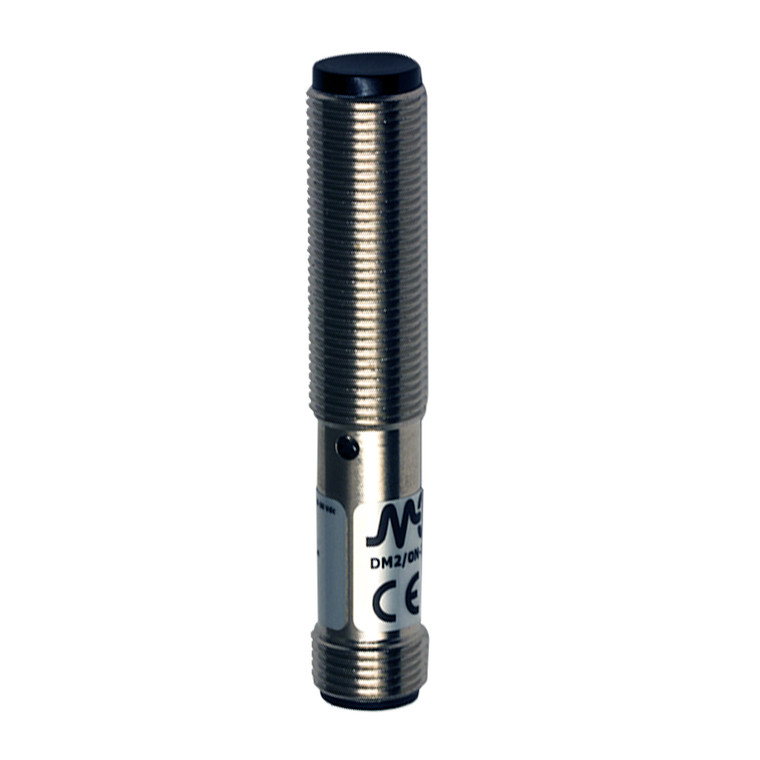

Datasensing DM2/0N-1H Sensors
Datasensing
$88.58
The Datasensing DM2/0N-1H Sensors are advanced photoelectric sensors designed for precise detection with a nominal sensing distance of 100mm. Utilizing a diffuse reflection principle, these sensors are ideal for short-distance applications up to 200mm, with a white target Kodak 90% 100 x 100mm. The sensors feature a robust IP67 protection degree, ensuring reliable performance in harsh environments. They offer selectable light-on/dark-on outputs and are equipped with a multifunction LED status indicator for easy monitoring.
Engineered for durability, the DM2/0N-1H Sensors are housed in nickel-plated brass with an active head made of PMMA, and they are designed to withstand operating temperatures ranging from -25°C to +70°C. The sensors are equipped with comprehensive electrical protections, including short-circuit and reverse polarity protection, and are capable of handling a load current of up to 100mA with a minimal output voltage drop.
With a high switching frequency of 400Hz and a rapid response time of 1.25ms, these sensors ensure quick and accurate detection. They are compatible with M12 connections and come with supplied accessories such as M12 x 1 nuts. The sensors are CE and cULus listed, meeting EMC compatibility standards EN 60947-5-2, and are resistant to shocks and vibrations as per IEC standards. Ideal for industrial applications, the DM2/0N-1H Sensors provide reliable and efficient performance with minimal thermal drift and repeat accuracy of 5%.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 400Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 28g
- Housing Material:
- Nickel plated brass
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70° C
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M12 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
