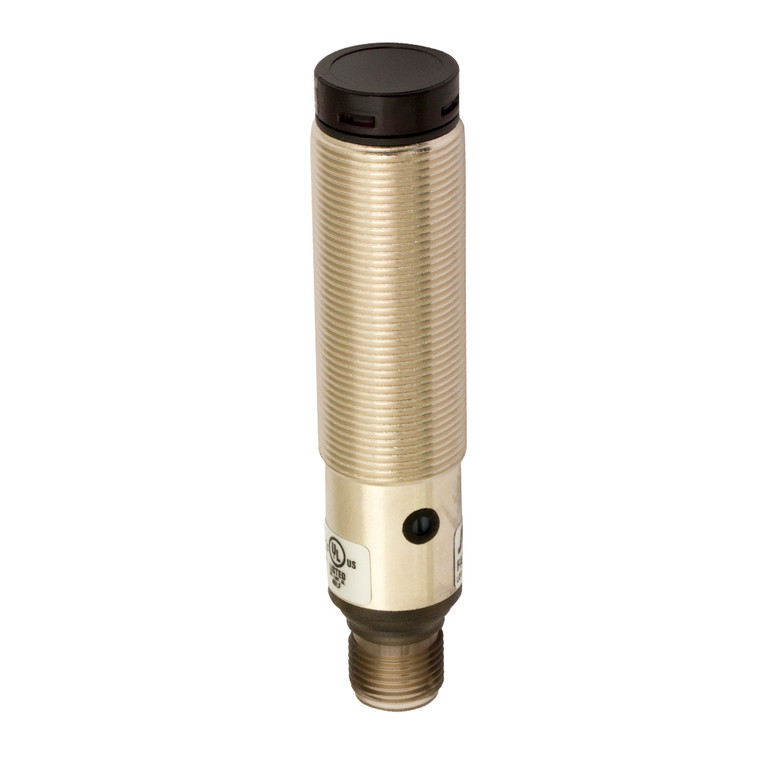

Datasensing FAI2/LP-1E5I Sensors
Datasensing
$261.10
The Datasensing FAI2/LP-1E5I Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial diffuse reflection principle, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. With a robust M18 design, they operate efficiently within a 10
30VDC power supply range and are equipped with a PNP Lon output type. The sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate performance.
Constructed with a durable nickel-plated brass housing and a PC plug, these sensors are built to withstand harsh environments, offering IP67 protection against dust and water ingress. The optical head can endure temperatures up to 110°C, while the overall operating temperature ranges from -25°C to +70°C. The sensors are equipped with LED indicators for easy status monitoring and feature comprehensive protection against short circuits, overvoltage, and reverse polarity.
Ideal for detecting transparent objects, the FAI2/LP-1E5I Sensors include retro-reflective models with red emission and are compatible with a variety of applications due to their sensitivity adjustment capabilities. They are CE and cULus listed, ensuring compliance with international safety standards. With a compact design and M12 plug connections, these sensors are easy to install and integrate into existing systems, making them a versatile choice for industrial automation needs.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP Lon
- Output Function:
- Lon
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze) -25°C +110°C Optical head
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
