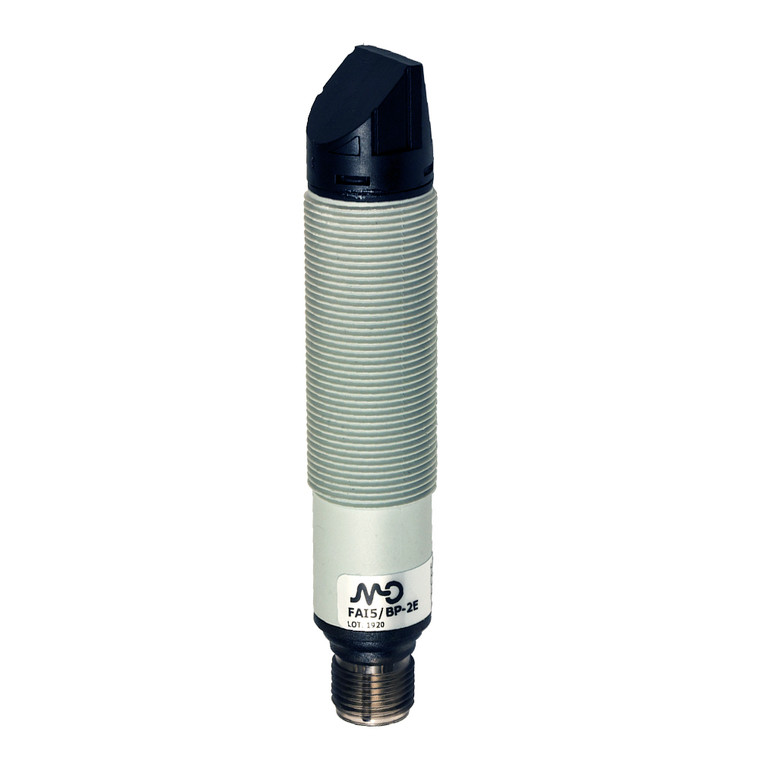

Datasensing FAI5/BP-2E Sensors
Datasensing
$78.98
The Datasensing FAI5/BP-2E Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 200mm, making them ideal for short-distance applications. With a robust M18 housing available in both metallic and plastic options, they ensure durability and reliability in various environments. The sensors operate on a 10...30 VDC power supply and are equipped with PNP NO+NC output functions, providing flexibility in integration.
Engineered with a radial optic position and a flat surface, the FAI5/BP-2E models are perfect for detecting transparent objects, thanks to their retro-reflective capabilities and red emission. They boast an IP67 protection degree, ensuring resistance against dust and water ingress. The sensors are designed with total protection against electric damages, including short-circuit, overvoltage, and reverse polarity protection, ensuring long-term operational safety.
With a high switching frequency of 250Hz and a rapid response time of 2ms, these sensors are suitable for fast-paced industrial applications. The LED indicators provide clear status updates, while the M12 plug connection ensures easy installation. Operating efficiently in temperatures ranging from -25°C to +70°C, the FAI5/BP-2E sensors are CE and cULus approved, meeting international standards for quality and safety.
- Nominal sensing distance:
- 200mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
