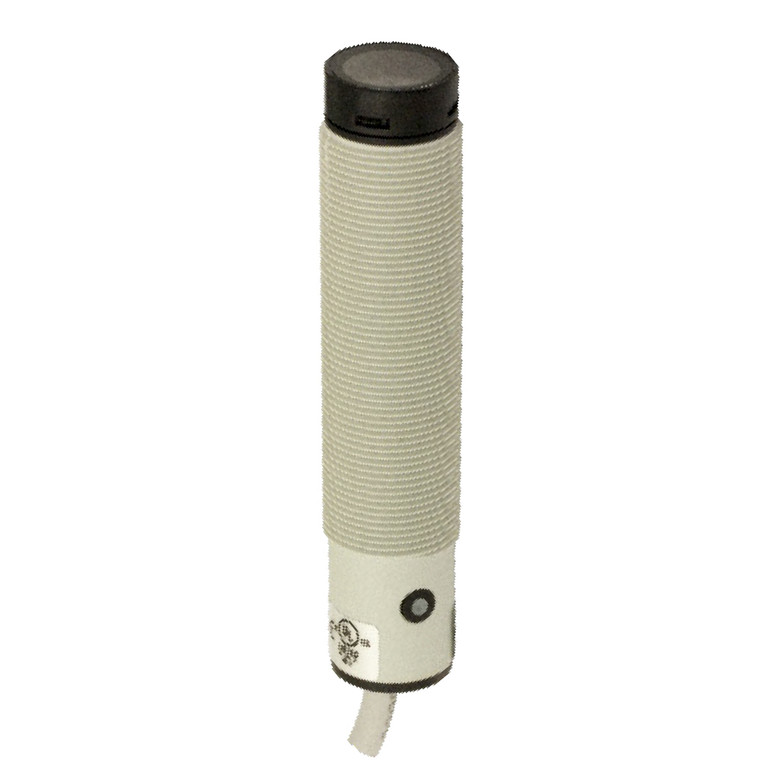

Datasensing FAI8/BP-0AAN Sensors
Datasensing
$129.44
The Datasensing FAI8/BP-0AAN Sensors are advanced photoelectric sensors designed for precise detection with a nominal sensing distance of 1 meter. Featuring a diffuse reflection function principle, these sensors are optimized for long-distance detection over 600mm, making them ideal for various industrial applications. The sensors are equipped with a sensitivity adjustment trimmer, allowing for fine-tuning to meet specific requirements. With a robust PBT/PC housing and IP67 mechanical protection, they are built to withstand harsh environments, operating efficiently in temperatures ranging from -25°C to +70°C.
The sensors offer a PNP NO+NC output type, with a switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and reliable performance. They are designed with comprehensive protection features, including short-circuit protection with autoreset, overvoltage, and reverse polarity protection. The LED infrared emission at 880nm ensures minimal interference from external light sources, with a tolerance of up to 3000lux from incandescent lamps and 10000lux from sunlight.
The FAI8/BP-0AAN Sensors come with a 2-meter PVC cable for easy installation and are supplied with M18 x 1 nuts and a screwdriver for secure mounting. They are CE and cULus approved, meeting the stringent standards of EMC compatibility (EN 60947-5-2) and shock and vibration resistance (IEC 60068-2-6 / IEC 60068-2-27). With a compact M18 x 1/L=67.5mm dimension, these sensors are a reliable choice for applications requiring high precision and durability.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
