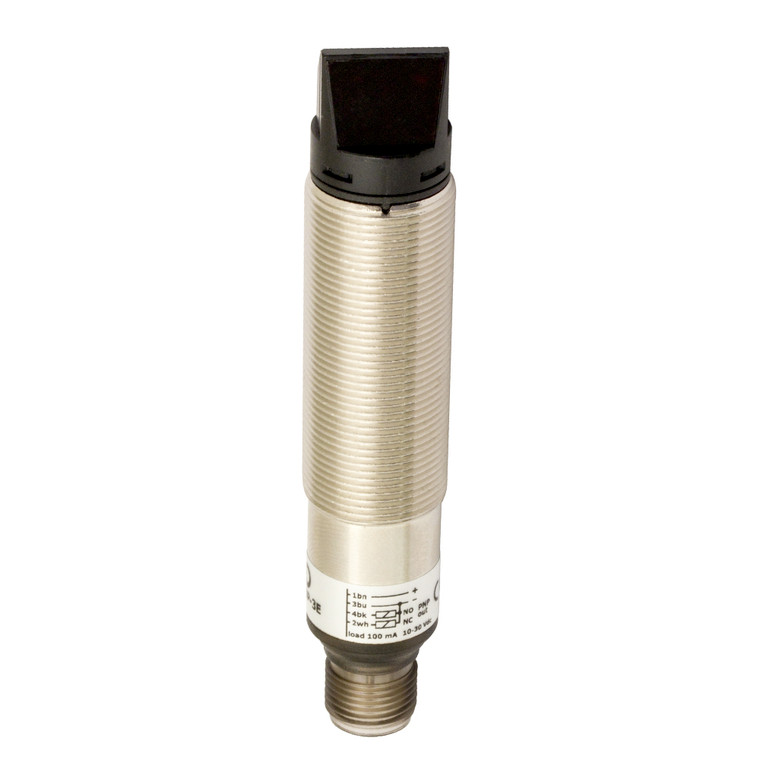

Datasensing FAI8/BP-3E Sensors
Datasensing
$114.94
The Datasensing FAI8/BP-3E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a 90° diffuse reflection with a nominal sensing distance of 800mm, these sensors are ideal for long-distance applications. The robust design includes a PNP NO+NC output type, ensuring versatile functionality. With a sensitivity adjustment trimmer, users can fine-tune the sensor's performance to suit specific needs. The sensors operate on a 10
30VDC power supply and are equipped with short-circuit and reverse polarity protection for enhanced durability. The M18 sensors boast a rugged nickel-plated brass housing with an IP67 protection rating, making them suitable for harsh environments. The compact design, with dimensions of M18 x 1/L=92.7mm, allows for easy integration into various systems. Additionally, the sensors are CE and cULus approved, ensuring compliance with international standards. The package includes M18 x 1 nuts and a screwdriver for convenient installation.
- Nominal sensing distance:
- 800mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
