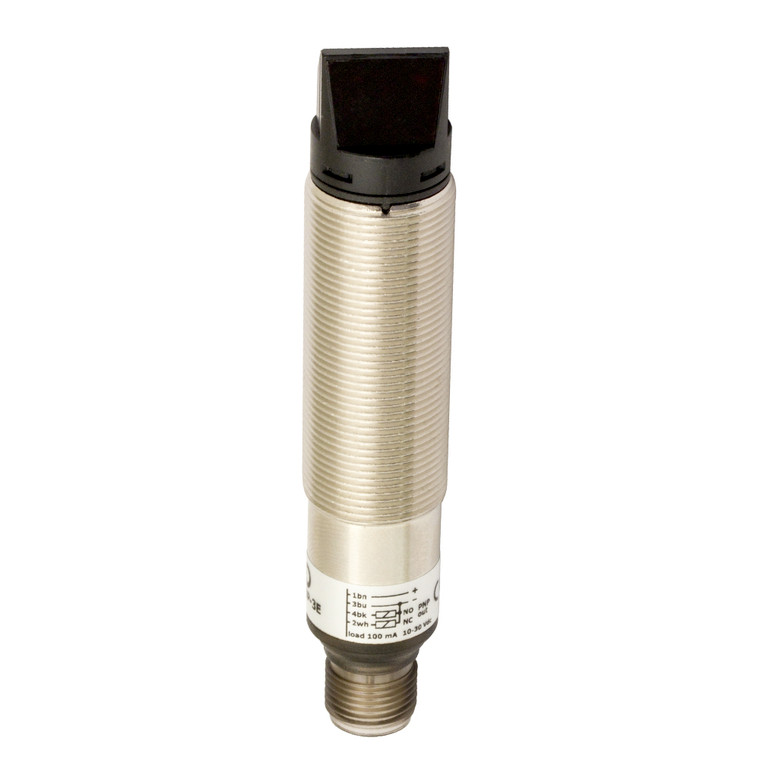

Datasensing FAIC/BN-3E Sensors
Datasensing
$86.96
The Datasensing FAIC/BN-3E Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° retroreflective function, these sensors are capable of detecting objects up to 4 meters away with a nominal sensing distance. They operate on a 10...30 Vdc power supply and are equipped with an NPN NO+NC output type, ensuring reliable performance in various applications. The sensors boast a robust construction with a nickel-plated brass housing and a PC plug, providing durability and resistance to harsh environments. With an IP67 protection degree, they are safeguarded against dust and water ingress, making them suitable for industrial settings.
The FAIC/BN-3E sensors are designed with a radial optic position and a flat surface, allowing for easy integration into existing systems. They feature a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate detection. The sensors are equipped with LED indicators for easy status monitoring and offer total protection against electric damages, including short-circuit and overvoltage protection.
These sensors are CE and cULus listed, meeting international safety and performance standards. They are also EMC compatible with EN 60947-5-2, ensuring minimal interference with other electronic devices. The sensors come with supplied accessories, including M18 x 1 nuts, for convenient installation. With a wide operating temperature range of -25°C to +70°C, the Datasensing FAIC/BN-3E Sensors are versatile and reliable solutions for various industrial automation applications.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
