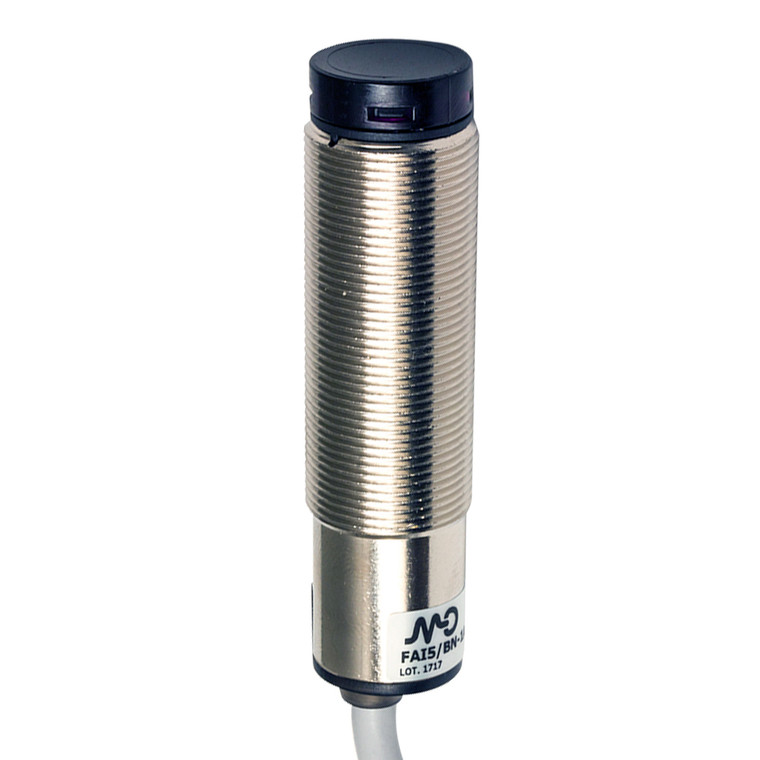

Datasensing FAIC/BP-1A Sensors
Datasensing
$74.10
The Datasensing FAIC/BP-1A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial retroreflective design, these sensors offer a nominal sensing distance of 5 meters, making them ideal for detecting transparent objects. With a robust metal housing and IP67 protection, they are built to withstand harsh environments. The sensors operate on a 10...30 VDC power supply and include a 2-meter PVC cable for easy installation. They provide both PNP NO+NC output functions, ensuring versatile application compatibility. The sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate performance. Additional features include short-circuit and overvoltage protection, reverse polarity protection, and LED indicators for output status. The FAIC/BP-1A Sensors are CE and cULus approved, ensuring compliance with international standards. Ideal for industrial applications, these sensors offer reliable performance with minimal thermal drift and repeat accuracy of 5%.
- Nominal sensing distance:
- 5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
