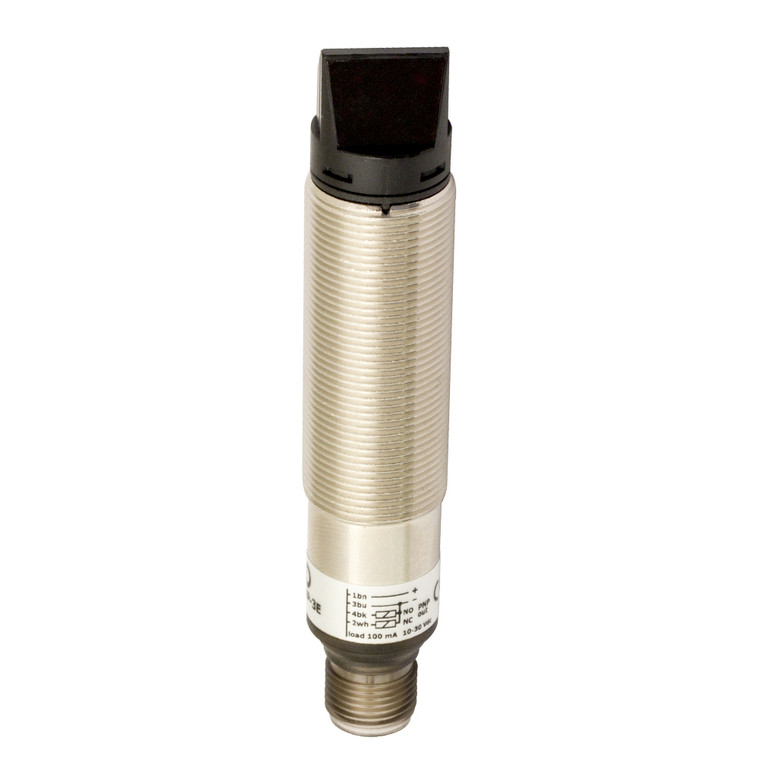

Datasensing FAIH/00-3E Sensors
Datasensing
$73.54
The Datasensing FAIH/00-3E Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a radial 90° optic position, these sensors are equipped with a robust metal housing and a reliable M12 connection. With a nominal sensing distance of 15 meters, they are ideal for applications requiring long-range detection. The sensors operate on a 10...30 VDC power supply and offer a high switching frequency of 250Hz, ensuring quick response times of just 2ms. Built to withstand harsh environments, they boast an IP67 protection degree, making them resistant to dust and water ingress. The nickel-plated brass housing and PC plug provide durability, while the LED infrared emission at 880nm ensures accurate detection. These sensors are CE and cULus approved, guaranteeing compliance with international safety standards. With features like reverse polarity protection and a thermal drift of ?10% Sr, the FAIH/00-3E Sensors deliver reliable performance in a wide temperature range of -25°C to +70°C. Ideal for industrial automation, these sensors come with supplied M18 x 1 nuts for easy installation.
- Nominal sensing distance:
- 15m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Emitter
- Emitter/Receiver:
- Emitter
- Optic position:
- Radial 90°
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (powerON)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
