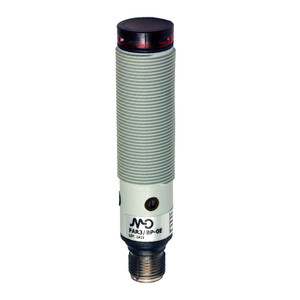

The Datasensing FAIZ/BP-0EAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. With a nominal sensing distance of 20 meters, these sensors feature a PNP NO+NC output type, ensuring versatile application in various industrial environments. The receiver operates with an axial optic position and is equipped with LED infrared emission at 880nm, providing excellent interference resistance to external light sources up to 10,000 lux.
Built with robust PBT/PC housing and an M12 plug connection, the sensor guarantees durability and ease of installation. It offers a high switching frequency of 250Hz and a rapid response time of 2ms, making it ideal for fast-paced operations. The sensor is protected against short circuits, overvoltage, and reverse polarity, ensuring reliable performance under challenging conditions.
With an IP67 mechanical protection rating, the sensor is resistant to dust and water ingress, suitable for harsh environments. It operates efficiently within a temperature range of -25°C to +70°C, without freezing. The sensor is compliant with CE and cULus Ex standards, ensuring safety and quality. Supplied with M18 x 1 nuts, the sensor is easy to mount and secure.
Ideal for applications requiring high precision and reliability, the Datasensing FAIZ/BP-0EAN Sensors are a dependable choice for industrial automation and safety systems.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18 x 1 /L =81,6mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
