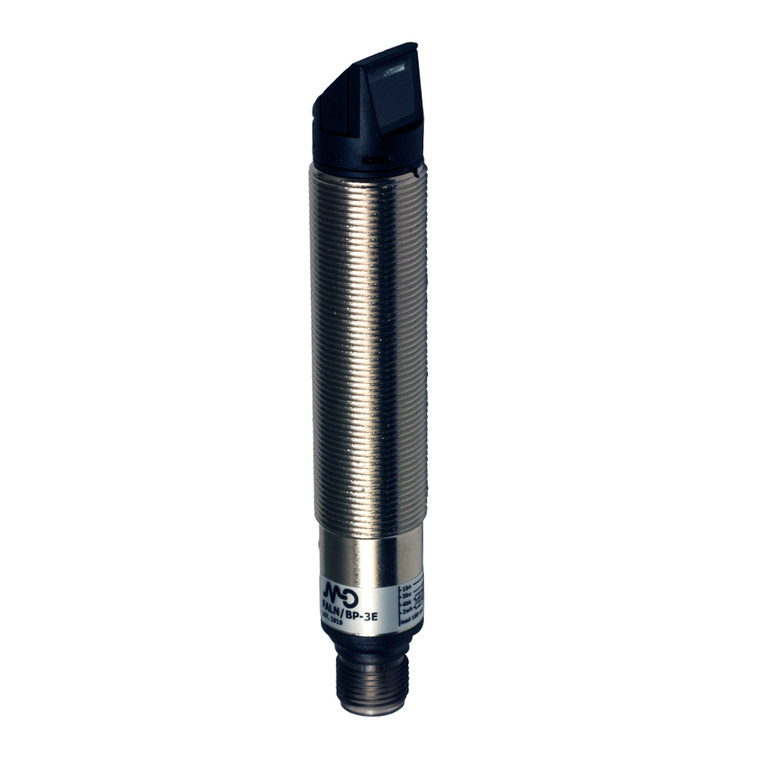

Datasensing FAL4/BN-3E Sensors
Datasensing
$292.74
The Datasensing FAL4/BN-3E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° laser diffuse reflection with a nominal sensing distance of 200mm, these sensors are perfect for short-distance applications. The robust design includes a radial optic position and a visible red laser emission model, ensuring accurate detection even in challenging environments. With an IP67 protection degree, these sensors are resistant to dust and water, making them suitable for industrial use.
Equipped with NPN NO+NC output types, the FAL4/BN-3E Sensors offer flexibility in various applications. The sensitivity adjustment is facilitated through a convenient teach-in method, allowing for easy calibration. The sensors boast a high switching frequency of 800Hz and a rapid response time of 625µs, ensuring quick and efficient operation.
Constructed with a durable nickel-plated brass housing and a glass/PC active head, these sensors are built to withstand harsh conditions. They operate within a voltage range of 10
30VDC and feature comprehensive protection against electrical damages, including short-circuit, overvoltage, and reverse polarity protection.
The FAL4/BN-3E Sensors are CE and cULus approved, ensuring compliance with international standards. They come with supplied accessories such as M18 x 1 nuts and a screwdriver for easy installation. With a compact design and a weight of just 100g, these sensors are easy to integrate into existing systems. Ideal for applications requiring precise and reliable sensing, the Datasensing FAL4/BN-3E Sensors are a top choice for professionals seeking quality and performance.
- Nominal sensing distance:
- 200mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- (focalized 100mm) white target 90% Kodak 200x200mm
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Operating temperature:
- -15°C...+ 55°C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
