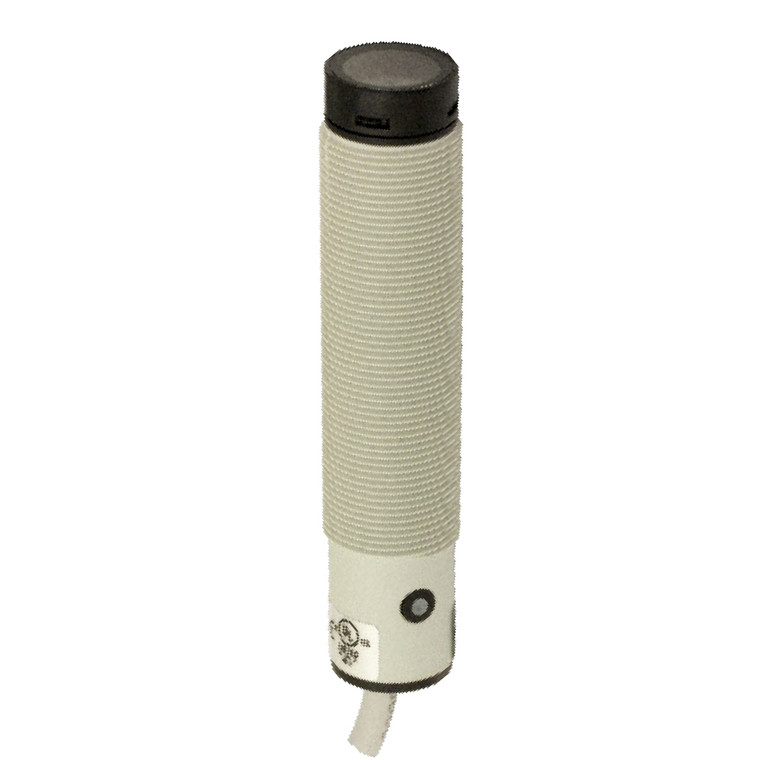

Datasensing FAL4/BP-0A Sensors
Datasensing
$270.63
The Datasensing FAL4/BP-0A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring an axial laser with diffuse reflection, these sensors offer a nominal sensing distance of 300mm, making them ideal for medium-distance applications up to 600mm. The sensors are equipped with a PNP NO+NC output type and provide a switching frequency of 800Hz with a rapid response time of 625µs.
Constructed with a robust IP67-rated housing, these sensors are available in both metallic and plastic options, ensuring durability in various environments. The visible red laser emission enhances detection accuracy, while the sensitivity adjustment feature allows for easy customization via teach-in.
Engineered to withstand electrical damages, the FAL4/BP-0A sensors include comprehensive protection features such as short-circuit protection with autoreset, overvoltage, reverse polarity protection, and resistance to external light interference up to 10,000 lux.
With a compact M18 x 1 design and a lightweight build of 50g, these sensors are easy to install and integrate into existing systems. The 2m PVC cable connection ensures flexibility in setup, and the included nuts and screwdriver facilitate quick installation.
Operating efficiently within a temperature range of -15°C to +55°C, these sensors are CE and cULus approved, meeting high standards of safety and performance. Ideal for industrial applications, the Datasensing FAL4/BP-0A Sensors deliver reliable performance with minimal maintenance.
- Nominal sensing distance:
- 300mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- (Focalized 100mm) white target 90% Kodak 200x200mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass / PC
- Tightening torque:
- 1Nm
- Operating temperature:
- -15°C...+ 55°C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
