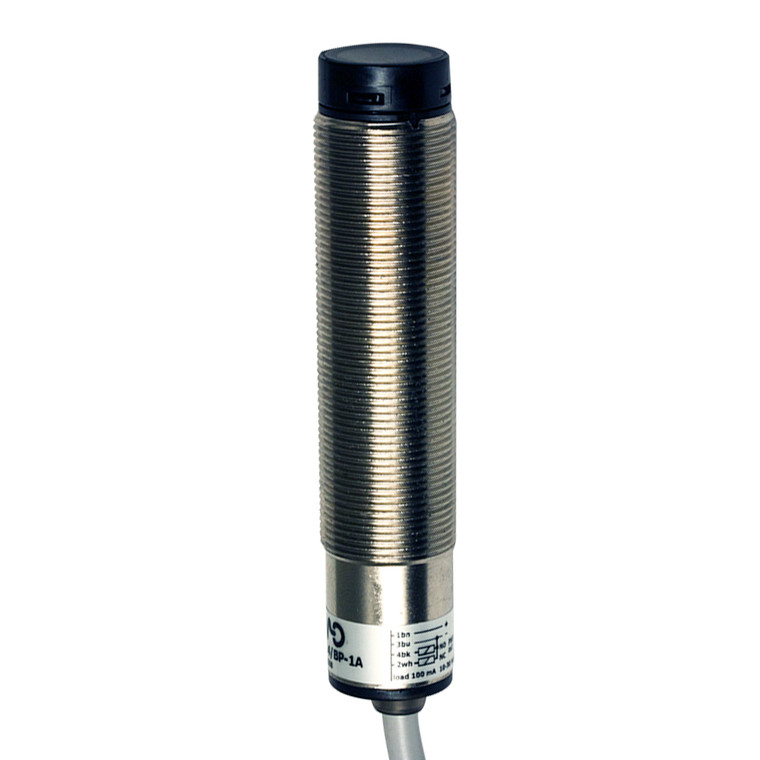

Datasensing FAL4/BP-2A Sensors
Datasensing
$291.87
The Datasensing FAL4/BP-2A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° laser diffuse reflection with a nominal sensing distance of 200mm, these sensors are equipped with a PNP NO+NC output type and a 2m axial plastic cable for versatile installation. The M18 sensors operate on a 10...30 Vdc power supply and offer both axial and radial optics with a flat surface, ensuring adaptability to various applications. With a visible red laser emission, these sensors provide clear and accurate detection, even in challenging environments.
Built to withstand harsh conditions, the FAL4/BP-2A Sensors boast an IP67 protection degree, safeguarding against dust and water ingress. The housing is available in either metallic or plastic, with a glass/PC active head material for enhanced durability. Sensitivity adjustment is made easy with the teach-in function, allowing for precise calibration to suit specific needs. The sensors are designed to handle a wide range of operating temperatures from -15°C to +55°C, ensuring consistent performance without freezing.
Additional features include short-circuit protection with autoreset, overvoltage, and reverse polarity protection, making these sensors highly reliable and safe to use. The sensors are CE and cULus listed, meeting international standards for quality and safety. With a switching frequency of 800Hz and a response time of 625µs, the FAL4/BP-2A Sensors deliver fast and accurate results, making them ideal for a variety of industrial applications. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 200mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- (focalized 100mm) white target 90% Kodak 200x200mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT/ PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass / PC
- Tightening torque:
- 1Nm
- Operating temperature:
- -15°C...+ 55°C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
