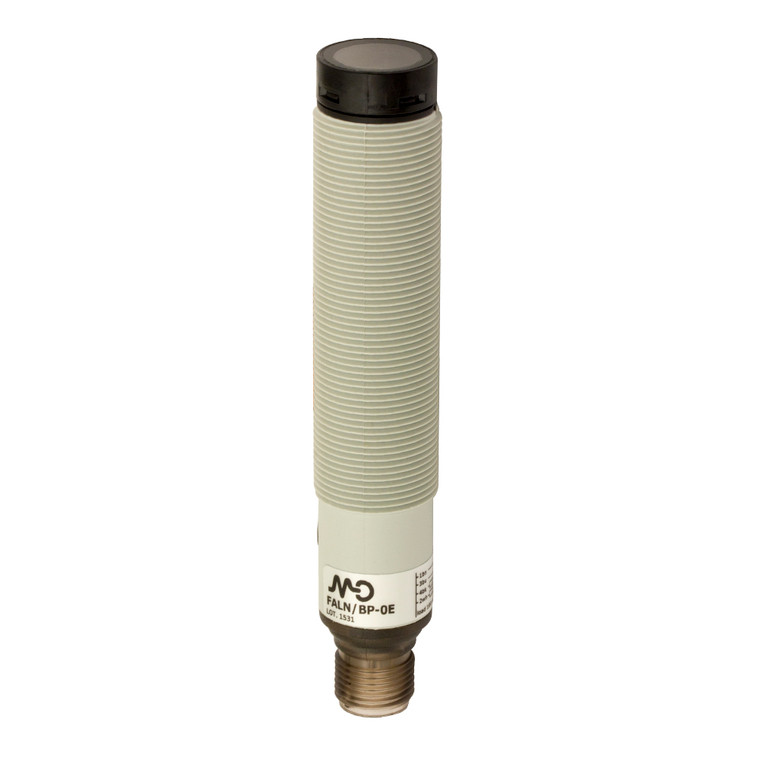

The Datasensing FALN/BP-0E Sensors offer a comprehensive solution for precise detection needs, featuring a complete range of M18 sensors powered by a 10...30 Vdc supply. Designed with both axial and radial optics on a flat surface, these sensors utilize a visible red laser emission for accurate performance. With an IP67 protection degree, they are built to withstand harsh environments, available in both metallic and plastic housings. Each model includes sensitivity adjustment through a convenient teach-in function, ensuring adaptability to various applications. The sensors provide total protection against electric damages and are CE and cULus listed for assured quality and safety.
Key specifications include a nominal sensing distance of 20m, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. The sensors operate on a polarized function principle, with an optic position set axially. They feature a PNP NO+NC output type, supporting a switching frequency of 800Hz and a rapid response time of 625µs. The operating voltage ranges from 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. Designed for efficiency, the sensors have a leakage current of ?10?A and an output voltage drop of ?2V at Iload=100mA.
Additional features include LED indicators for power supply and operation status, short-circuit and overvoltage protection, and reverse polarity protection. The sensors are equipped to handle interference from external light sources up to 3000lux (incandescent lamp) and 10000lux (sunlight). Constructed with a durable PBT/PC plug housing and a glass/PC active head, they are designed to endure operating temperatures from -15°C to +55°C without freezing. The package includes M18 x 1 nuts and a screwdriver for easy installation. With EMC compatibility to EN 60947-5-2 standards and resistance to shocks and vibrations, these sensors are a reliable choice for industrial applications.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
