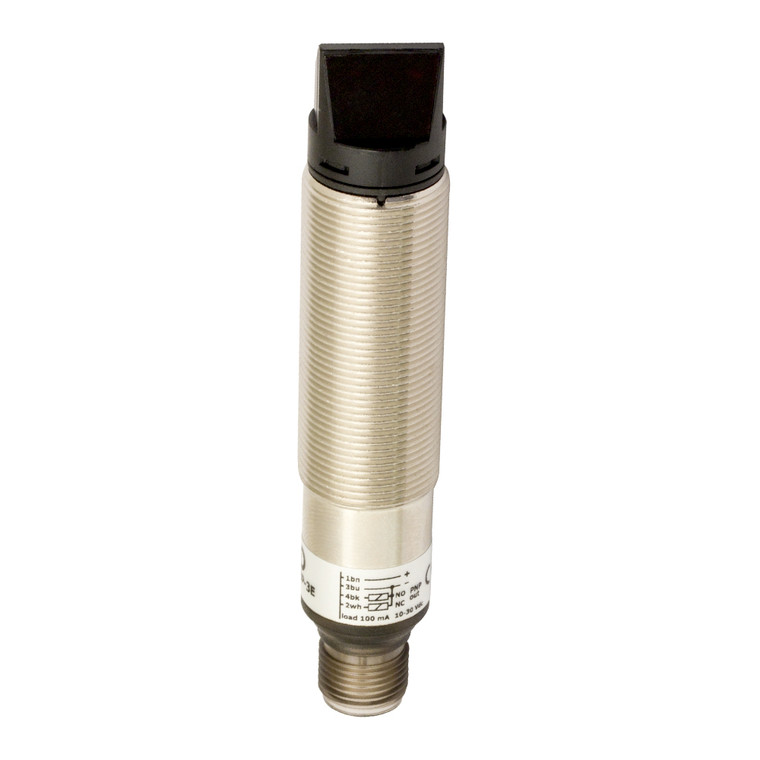

Datasensing FAR2/BP-3E Sensors
Datasensing
$85.16
The Datasensing FAR2/BP-3E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a 90° diffuse reflection function, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. With a robust M18 housing available in both metallic and plastic options, they ensure durability and adaptability in various environments. The sensors operate on a 10...30 VDC power supply and are equipped with PNP NO+NC output types, providing flexibility in integration.
Engineered with a radial optic position and a flat surface, the FAR2/BP-3E Sensors are perfect for detecting transparent objects, thanks to their retro-reflective models with red LED emission. They boast an IP67 protection degree, ensuring total protection against dust and water ingress, and are resistant to electric damages with built-in short-circuit and reverse polarity protection.
The sensors are designed to withstand harsh conditions, operating efficiently within a temperature range of -25°C to +70°C. They feature a high switching frequency of 250Hz and a quick response time of 2ms, ensuring fast and accurate performance. The LED indicators provide clear status updates, while the M12 plug connection facilitates easy installation.
Approved by CE and cULus, and compliant with EMC standards, these sensors are reliable and safe for industrial applications. With a compact design and supplied accessories like M18 nuts, the Datasensing FAR2/BP-3E Sensors are a versatile and essential component for any automation system.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
