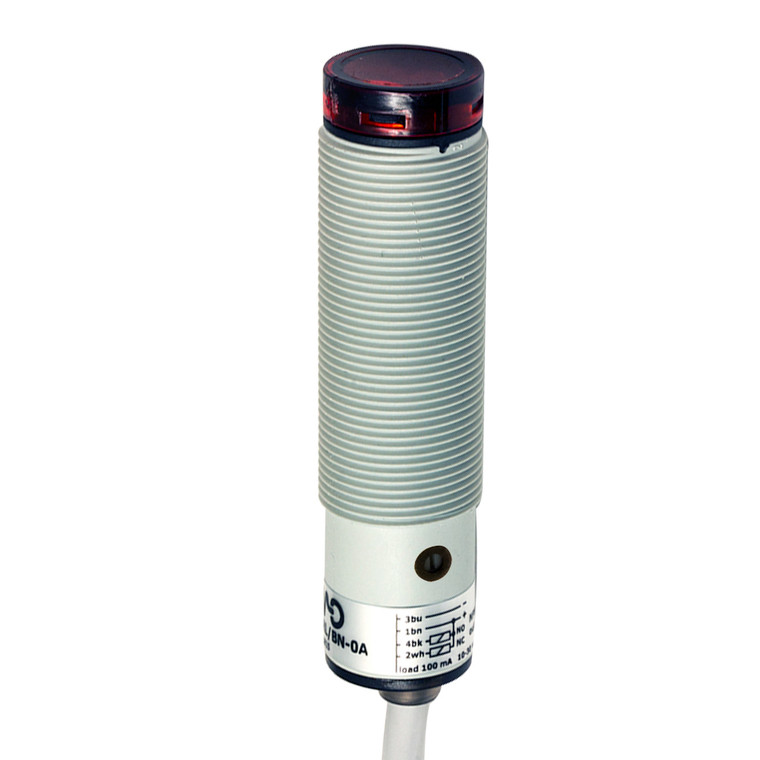

Datasensing FAR3/BP-0A Sensors
Datasensing
$81.54
The Datasensing FAR3/BP-0A Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, making them ideal for various applications. The retro-reflective models are specifically designed for detecting transparent objects, utilizing a red emission and boasting an IP67 protection degree for enhanced durability. Available in both metallic and plastic housings, these sensors provide flexibility and robustness in different environments.
Each model includes sensitivity adjustment via a trimmer, ensuring precise detection capabilities. The sensors operate on the principle of diffuse reflection, suitable for short distances up to 200mm, with a nominal sensing distance of 100mm. They are equipped with PNP NO+NC output types, offering both normally open and normally closed functions. With a high switching frequency of 250Hz and a rapid response time of 2ms, these sensors are designed for fast and reliable operation.
The sensors are protected against various electrical damages, including short-circuit (autoreset), overvoltage, and reverse polarity protection. They are also resistant to external light interference, withstanding up to 5000lux from incandescent lamps and 10000lux from sunlight. The robust construction includes a PBT/PC housing with a 2m PVC cable connection, ensuring durability and ease of installation.
Additional features include LED indicators for output status, a time delay before availability of ?200ms, and a mechanical protection rating of IP67. The sensors are CE and cULus listed, ensuring compliance with international standards. Supplied accessories include M18 x 1 nuts and a screwdriver for convenient setup. With an operating temperature range of -25°C to +70°C, these sensors are built to withstand challenging conditions without freezing.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
