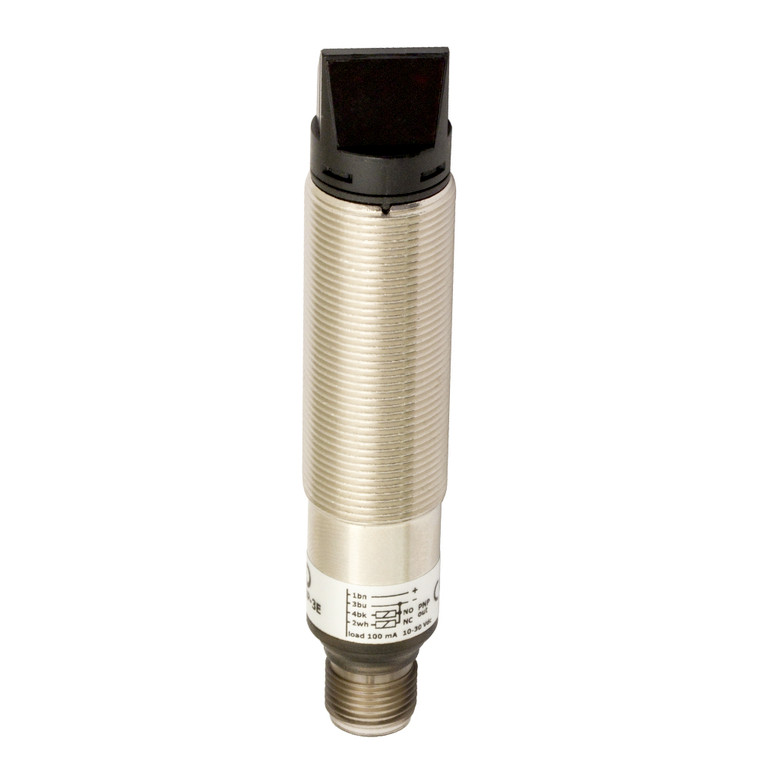

Datasensing FAR3/BP-3E Sensors
Datasensing
$103.82
The Datasensing FAR3/BP-3E Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. The robust M18 sensors operate on a 10...30 Vdc power supply and are equipped with both axial and radial optics with a flat surface for versatile installation options.
These sensors are built to withstand challenging environments, boasting an IP67 protection degree and a durable nickel-plated brass housing. They are equipped with sensitivity adjustment via a trimmer, ensuring optimal performance across various applications. The sensors feature a PNP NO+NC output type, with a switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and reliable operation.
The FAR3/BP-3E Sensors are designed with total protection against electric damages, including short-circuit protection with autoreset, overvoltage, and reverse polarity protection. They are also CE and cULus listed, ensuring compliance with international safety standards. The sensors are equipped with LED indicators for easy status monitoring and are resistant to external light interference, withstanding up to 5000lux from incandescent lamps and 10000lux from sunlight.
With a compact design measuring M18 x 1/L=92.7mm and weighing just 100g, these sensors are easy to install and integrate into existing systems. They come with supplied accessories, including M18 x 1 nuts and a screwdriver, for convenient setup. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing FAR3/BP-3E Sensors are a reliable choice for a wide range of industrial applications.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
