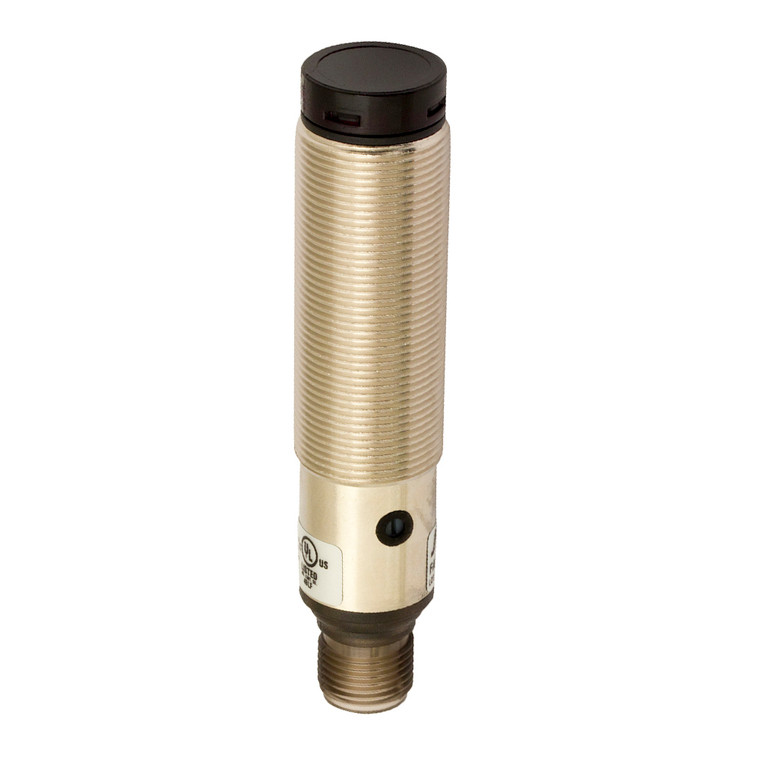

Datasensing FARL/BP-1E Sensors
Datasensing
$98.96
The Datasensing FARL/BP-1E Sensors are designed for precision and reliability in detecting transparent objects. These photoelectric sensors feature an axial retroreflective design with a nominal sensing distance of 1.5 meters, adjustable via a trimmer for optimal sensitivity. With a robust M18 housing made from nickel-plated brass and a PC plug, these sensors are built to withstand harsh environments, offering IP67 protection against dust and water ingress.
Operating on a 10 to 30 VDC power supply, the FARL/BP-1E sensors provide a PNP NO+NC output, ensuring versatile integration into various systems. The sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, making them ideal for fast-paced industrial applications. They are equipped with LED indicators for easy status monitoring and feature comprehensive protection against short circuits, overvoltage, and reverse polarity.
The sensors are compatible with RL113G or RL116 reflectors and are designed to handle interference from external light sources up to 5000 lux from incandescent lamps and 10000 lux from sunlight. With a compact design measuring M18 x 1 /L =81.6mm and weighing just 100g, these sensors are easy to install and maintain. They come with supplied accessories, including M18 x 1 nuts and a screwdriver, ensuring a hassle-free setup. Approved by CE and cULus, the FARL/BP-1E sensors meet stringent safety and performance standards, making them a reliable choice for your sensing needs.
- Nominal sensing distance:
- 1,5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 0,1m
- Function Principle:
- Transparent object
- Notes:
- On RL113G or RL116 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
