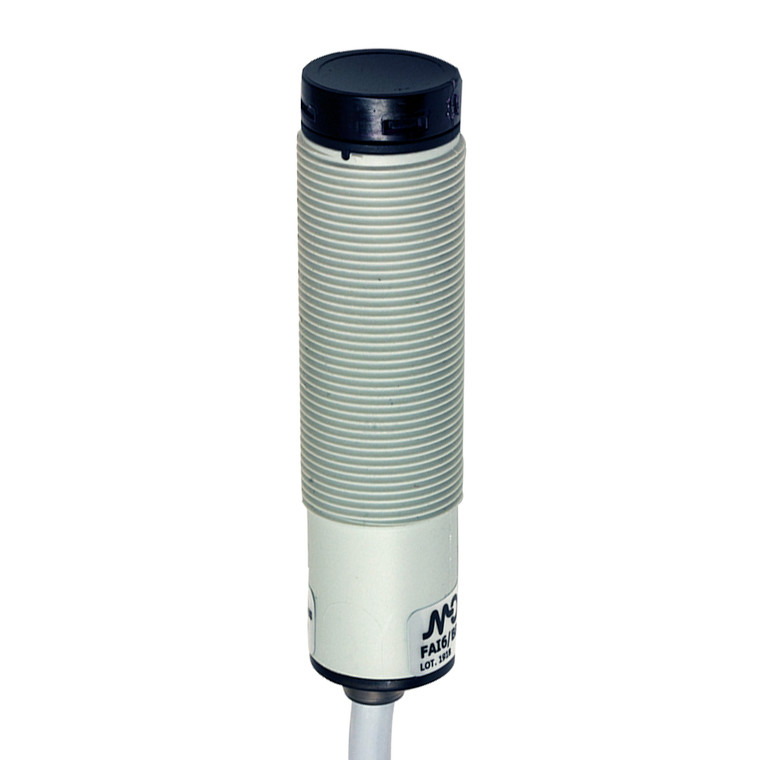

Datasensing FARP/BN-0A Sensors
Datasensing
$79.89
The Datasensing FARP/BN-0A Sensors are designed for precision and reliability in various industrial applications. These photoelectric sensors feature an axial polarized design with a nominal sensing distance of 4 meters, ensuring accurate detection of transparent objects. With a robust IP67 protection rating, they are built to withstand harsh environments, offering total protection against electric damages. The sensors operate on a 10...30 VDC power supply and include a 2-meter plastic cable for easy installation.
Equipped with NPN NO+NC output functions, these sensors provide flexibility in integration, while the LED indicators offer clear status visibility. The FARP/BN-0A model is engineered with a high switching frequency of 250Hz and a rapid response time of 2ms, making it ideal for fast-paced operations. Its durable housing, made from PBT/PC materials, ensures longevity, and the device is approved by CE and cULus standards, guaranteeing quality and safety.
Additional features include short-circuit and overvoltage protection, reverse polarity protection, and a sensitivity adjustment option. The sensors are designed to resist interference from external light sources, withstanding up to 5000 lux from incandescent lamps and 10000 lux from sunlight. Compact and lightweight, with dimensions of M18 x 1/L=67.5mm and a weight of 50g, the FARP/BN-0A Sensors are a reliable choice for efficient and effective object detection.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
