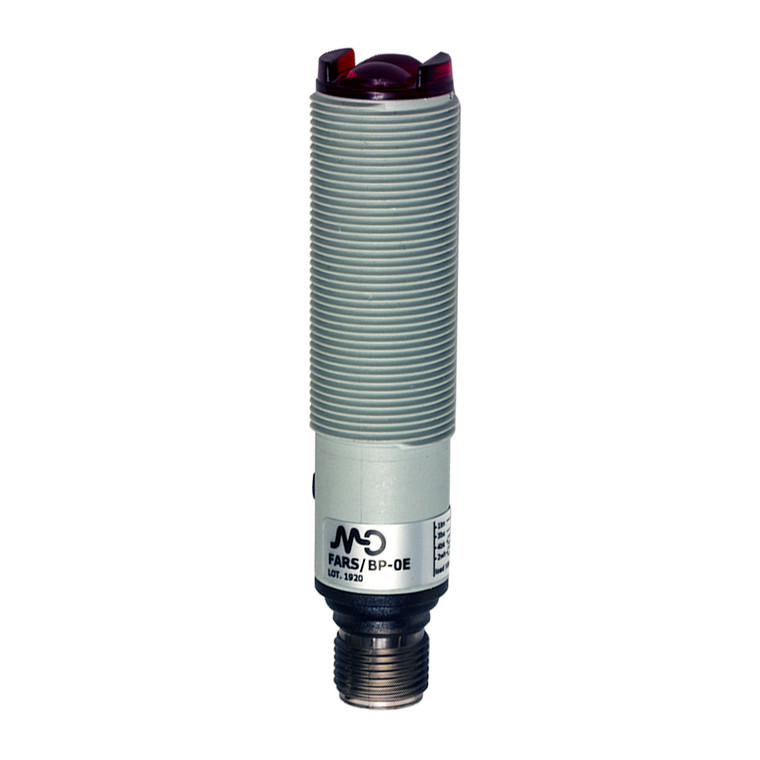

Datasensing FARS/BP-0E Sensors
Datasensing
$141.63
The Datasensing FARS/BP-0E Sensors offer a comprehensive solution for precise object detection with their M18 design and versatile features. These sensors operate on a 10...30 Vdc power supply and are equipped with both axial and radial optics featuring a flat surface. They are particularly effective for detecting transparent objects, thanks to their retro-reflective models with red emission. With an IP67 protection degree, these sensors are built to withstand harsh environments, whether housed in metallic or plastic casings.
The FARS/BP-0E Sensors provide a nominal sensing distance of 130mm, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. Sensitivity can be finely tuned using the trimmer adjustment, and the sensors are designed with a minimum sensing distance (blind zone) of 30mm. They employ a background suppression function principle, ensuring reliable performance even in challenging conditions.
These sensors feature an axial optic position and offer a PNP NO+NC output type, with a switching frequency of 1Khz and a rapid response time of 500µs. They are engineered to handle a no-load supply current of ? 25mA and a load current of ?100mA, with a leakage current of ?10?A and an output voltage drop of ?2V@Iload=100mA. The sensors are protected against short circuits, overvoltage, and reverse polarity, ensuring durability and reliability.
The FARS/BP-0E Sensors are equipped with LED indicators for easy status monitoring and are designed to resist interference from external light sources up to 5000lux (incandescent lamp) and 10000lux (sunlight). With dimensions of M18 x 1 /L =79,4mm and a weight of 30g, these sensors are compact yet robust. They are constructed with a PBT/PC plug housing and a PMMA active head material, offering a tightening torque of 1Nm.
Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are CE and cULus approved, ensuring compliance with international standards. They come with supplied accessories, including M18 x 1 nuts and a screwdriver, for easy installation and maintenance. With EMC compatibility to EN 60947-5-2 and resistance to shocks and vibrations as per IEC standards, the Datasensing FARS/BP-0E Sensors are a reliable choice for various industrial applications.
- Nominal sensing distance:
- 130mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 30mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
