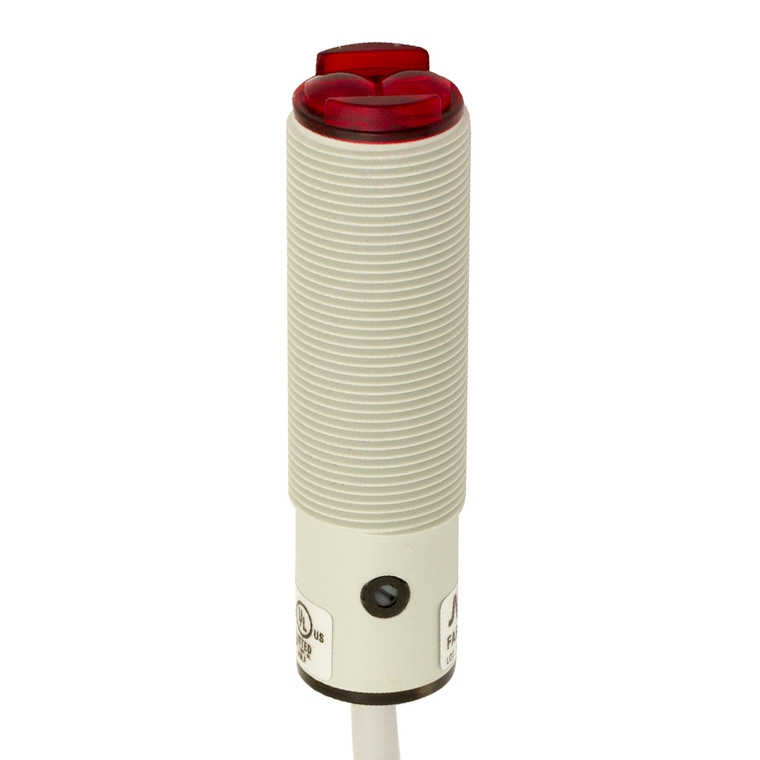

Datasensing FARW/BP-0AAN Sensors
Datasensing
$235.23
The Datasensing FARW/BP-0AAN Sensors are advanced photoelectric sensors designed for precise detection with axial background suppression. Featuring an adjustable sensing range of 35-300 mm, these sensors offer PNP NO+NC output with a 2m plastic cable for easy installation. Certified for use in hazardous environments (II 3G Ex nA IIC T6, II 3D Ex tD A22), they provide reliable performance with IP67 protection and a maximum operating temperature of 85°C. The sensors boast a nominal sensing distance of 350mm, with a thermal drift of ?10% Sr and a repeat accuracy of 5%. Sensitivity can be adjusted via a trimmer, and the minimum sensing distance is 35mm. With a switching frequency of 1kHz and a response time of 500µs, these sensors ensure quick and accurate detection. They operate on a voltage range of 10
30VDC, with a no-load supply current of ?25mA and a load current of ?100mA. The sensors are equipped with short-circuit and reverse polarity protection, and feature LED indicators for output status. Constructed with durable PBT/PC housing and PMMA active head material, they are designed to withstand shocks and vibrations as per IEC standards. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ideal for industrial applications requiring high precision and reliability.
- Nominal sensing distance:
- 350mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 35mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Pin point Red(660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Optical fibre material:
- PMMA
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
