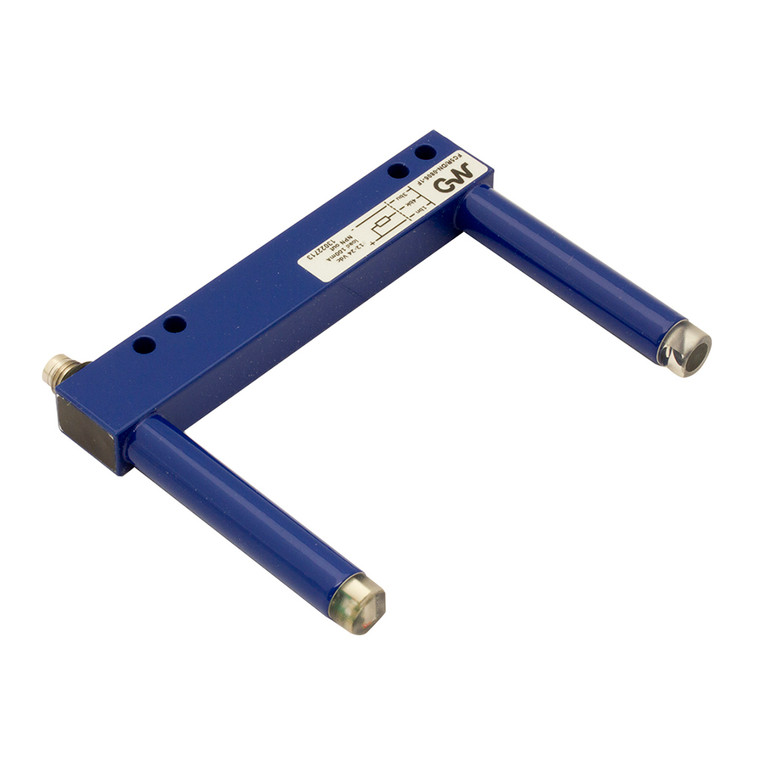

Datasensing FC5R/DN-0806-1F Sensors
Datasensing
$190.70
The Datasensing FC5R/DN-0806-1F Sensors are designed for precision and reliability, featuring a slot sensor with an 80mm width and 60mm depth. Equipped with a high-power RED LED, these sensors are capable of detecting objects as small as 0.8mm. The robust metal housing ensures durability, while the M8 3-pin connector allows for easy installation. With a switching frequency of 4 KHz and an operating voltage range of 12 to 24VDC, these sensors offer fast response times and efficient performance. The LED indicator provides high visibility for status output, and the sensors are protected against short-circuits and reverse polarity. They are designed to withstand external light interference up to 5000lux from incandescent lamps and 10000lux from sunlight. The painted aluminum housing and polyamide/glass active head material ensure long-lasting use, and the sensors are approved by CE and UL standards, with EMC compatibility according to EN 60947-5-2. Operating within a temperature range of -10°C to +60°C, these sensors are ideal for various industrial applications, offering IP67 mechanical protection for reliable performance in challenging environments.
- Nominal sensing distance:
- 80mm
- minimum detectable object:
- 0,8mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- NPN Don
- Output Function:
- Don
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 86g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 80mm
- Depth slot detection:
- 60mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
