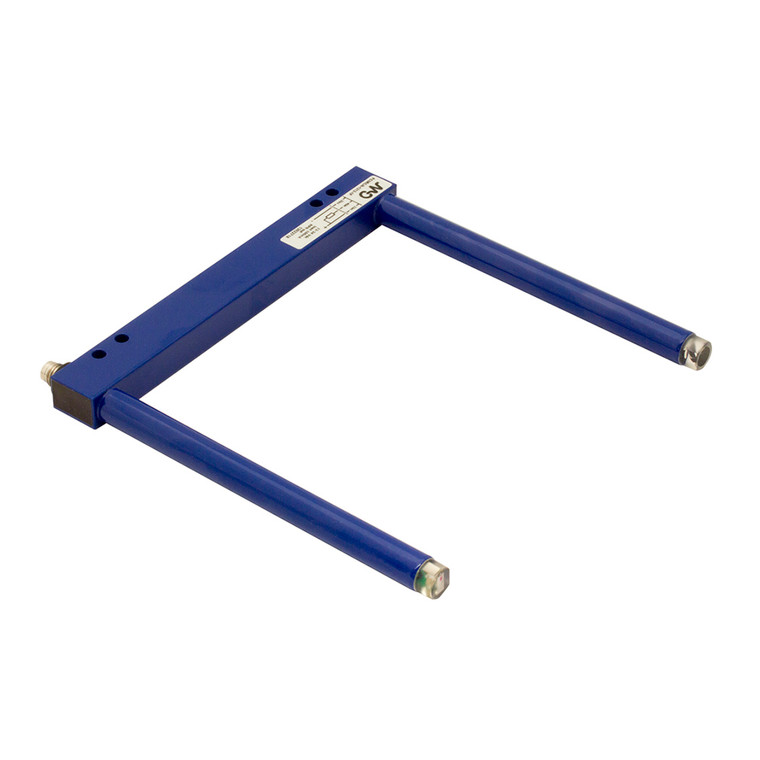

Datasensing FC5R/DP-1212-1F Sensors
Datasensing
$220.97
The Datasensing FC5R/DP-1212-1F Sensors are designed for precision and reliability, featuring a 120mm width slot with a high-power RED LED emission. These sensors are ideal for detecting minimum size objects as small as 0.8mm, thanks to their advanced photoelectric slot technology. With a robust metal housing and a compact design, they are built to withstand challenging environments, offering an operating temperature range of -10°C to +60°C. The sensors are equipped with a PNP NO output type and a convenient M8 3-pin connector for easy installation.
The high visibility LED indicator ensures clear status output, while the sensors boast a fast switching frequency of 4 KHz and a response time of just 125µs. They operate efficiently within a voltage range of 12 to 24VDC, with a no-load supply current of ? 20mA and a load current of ?100mA. The sensors are designed with safety in mind, featuring short-circuit and reverse polarity protection.
Constructed with a painted aluminium housing and a polyamide/glass active head, these sensors are both durable and lightweight, weighing only 141g. They are CE and UL approved, with EMC compatibility to EN 60947-5-2 standards, and offer IP67 mechanical protection, making them suitable for a wide range of industrial applications.
- Nominal sensing distance:
- 120mm
- minimum detectable object:
- 0,8mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- PNP Don
- Output Function:
- Don
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 141g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 120mm
- Depth slot detection:
- 120mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
