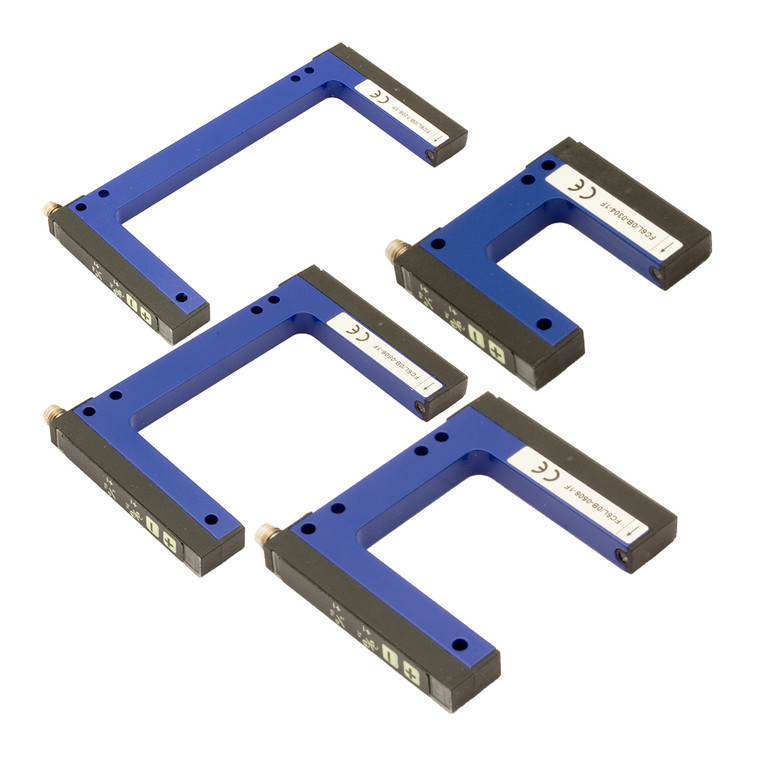

Datasensing FC6L/0B-0106-1F Sensors
Datasensing
$454.05
The Datasensing FC6L/0B-0106-1F Sensors are designed for precision and reliability in industrial applications. Featuring a 15mm width and 59mm depth slot, these sensors offer simple and accurate manual adjustments using intuitive -/+ buttons. With infrared and class 1 laser emission, they ensure high-performance detection with a minimum object size of 0.05mm. The robust metal housing provides durability, while the light/dark switching capability is easily selectable via a button. Operating within a temperature range of -20 to +60 °C, these sensors are equipped with M8 connectors (4 pins) supporting PNP/NPN, LO/DO configurations. They boast a high switching frequency of 10 kHz and a rapid response time of 50 µs. The sensors operate on a 12 to 24VDC voltage range, with a no-load supply current of ? 40mA and a load current of ?100mA. Additional features include short-circuit and reverse polarity protection, LED indicators for status and adjustment, and a robust IP65 protection rating. The painted aluminum housing and polyamide/glass active head material ensure long-lasting performance, making these sensors an ideal choice for demanding environments.
- Nominal sensing distance:
- 15mm
- minimum detectable object:
- 0.05mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (670nm) class1
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 80g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 50°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 15mm
- Depth slot detection:
- 59mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
