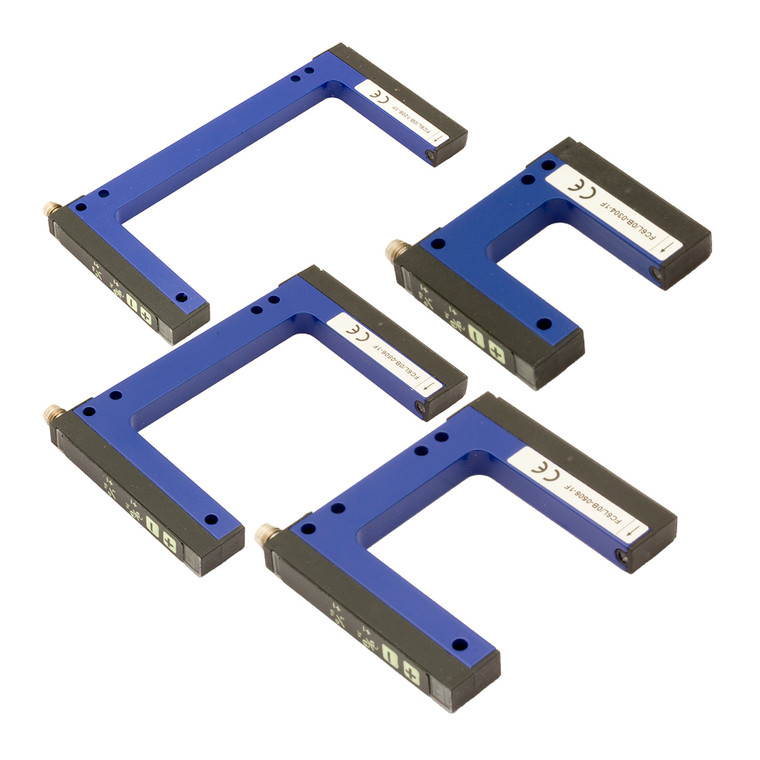

Datasensing FC6L/0B-M210-1F Sensors
Datasensing
$499.45
The Datasensing FC6L/0B-M210-1F Sensors are designed for precision and reliability in industrial applications. Featuring a 2mm width and 95mm depth slot, these sensors offer simple and accurate manual adjustments using -/+ buttons. They utilize infrared and LASER emission class 1 technology, housed in a durable metal casing. The sensors provide light/dark switching, selectable by button, and can detect objects as small as 0.05mm. With a wide operating temperature range of -20 to +60 °C, they are equipped with M8 connectors (4 pins) supporting PNP/NPN, LO/DO configurations. The sensors boast a high switching frequency of 10 kHz and a rapid response time of 50 µs. They operate on a voltage range of 12 to 24VDC, with a no-load supply current of ? 40mA and a load current of ?100mA. The output voltage drop is ?2V at Iload=100mA, and they feature short-circuit and reverse polarity protection. The sensors are resistant to external light interference up to 5000lux from incandescent lamps and 10000lux from sunlight. Constructed with a painted aluminum housing and polyamide/glass active head material, they are lightweight at 80g and meet CE and EMC compatibility standards. The sensors are protected with an IP65 degree of protection, ensuring reliable performance in demanding environments.
- Nominal sensing distance:
- 2mm
- minimum detectable object:
- 0.05mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (670nm) class1
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 80g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 50°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 2mm
- Depth slot detection:
- 95mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
