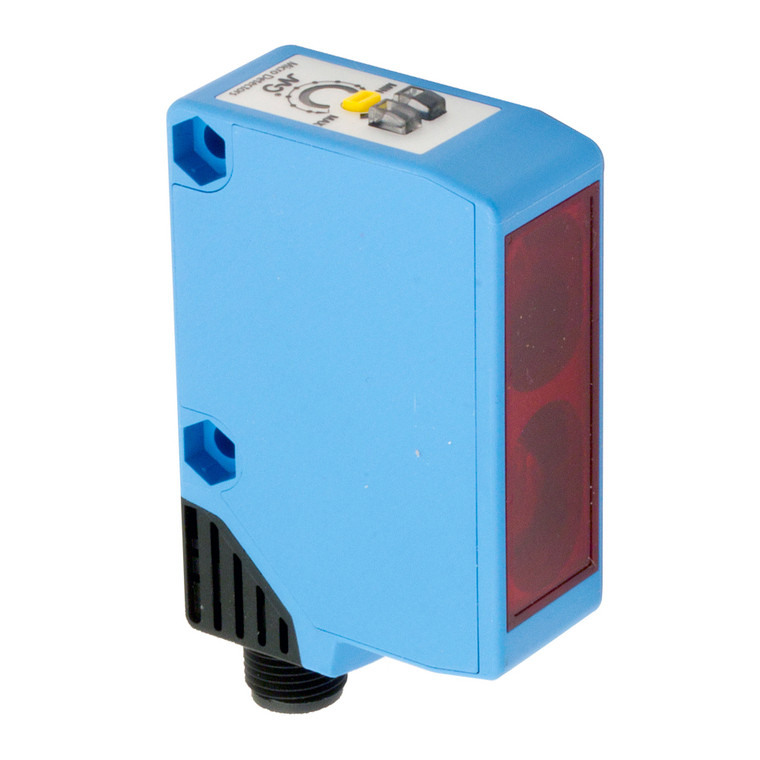

The Datasensing FGRHD/0P-0E Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. These compact sensors feature a cable output or a revolving connector, offering flexibility in installation. With a nominal sensing distance of 50 meters, they are equipped with a sensitivity adjustment potentiometer for fine-tuning detection capabilities. The sensors operate on a 10 to 30VDC power supply and provide a PNP L/D selectable output, ensuring compatibility with diverse systems.
The FGRHD/0P-0E Sensors boast a robust design with an IP67 protection rating, making them suitable for harsh environments. They are protected against electrical damages, including short-circuit and reverse polarity protection, and can withstand impulsive overvoltage. The sensors are equipped with dual multifunction LED indicators for easy monitoring of output state and alignment.
Constructed with durable ABS housing and PMMA active head material, these sensors are designed to endure temperatures ranging from -25°C to +55°C. They are compliant with CE and UR approvals and meet EMC compatibility standards (EN 60947-5-2). The package includes a mounting bracket for easy installation, ensuring that the Datasensing FGRHD/0P-0E Sensors are ready to enhance your operational efficiency with reliable performance and adaptability.
- Nominal sensing distance:
- 50m
- Sensitivity adjustment:
- Potentiometer 2 turns with position indicator (emitter)
- Function Principle:
- Emitter and Receiver
- Optic position:
- Axial
- Emitter Code:
- FGRH/00-0E
- Receiver Code:
- FGRD/0P-0E
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA (emitter), ? 20mA (receiver)
- Load current:
- ?100mA
- Output voltage drop:
- ?1,8V@Iload=100mA
- LED indicators:
- Green (powerON) Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 10,000Lux (minimum sunlight), 3,000 min HF lamp
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- ABS
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- -25°C +55°C
- Diameter/Dimension:
- Cubic
- Approvals:
- CE UR
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP67
- Supplied Accessories:
- Mounting bracket STFG 00
- Operating Temperature:
- - 25°C + 55°C (Without freeze)
- Mechanical Protection:
- IP67
