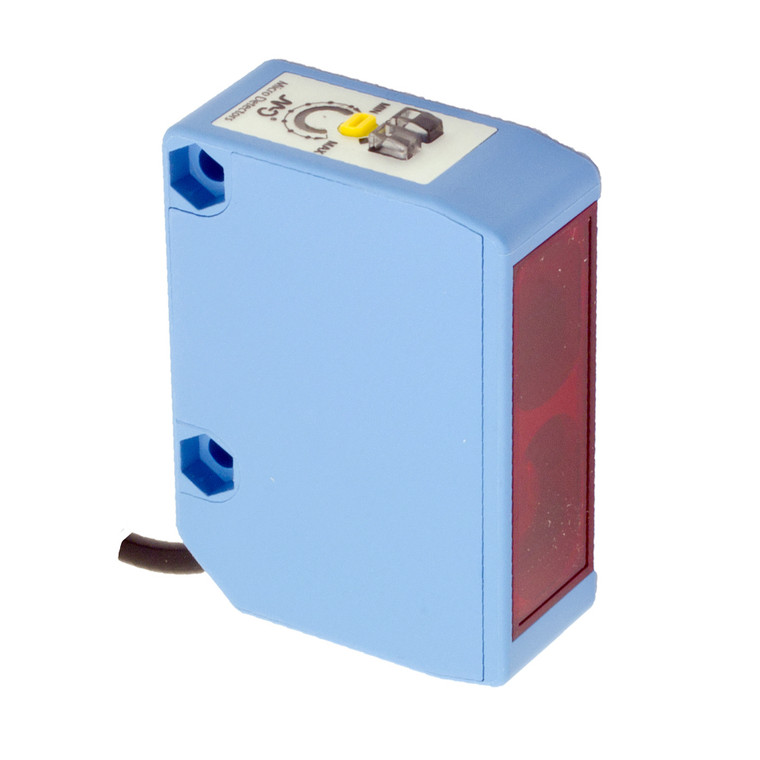

Datasensing FGRS/DT-0A Sensors

The Datasensing FGRS/DT-0A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a cubic design with background suppression, these sensors offer a nominal sensing distance of 310mm and a minimum sensing distance of 90mm, making them ideal for various industrial applications. The sensors come equipped with a 2m PVC cable and are available with either cable output or a revolving connector. They support both NPN or PNP output for DC models and SPDT voltage-free relay output for AC models, with selectable LO/DO output status. Engineered for durability, the FGRS/DT-0A Sensors are totally protected against electrical damages, including short-circuit and reverse polarity protection, and are capable of withstanding impulsive overvoltage. The sensors feature a double multifunction LED indicator for output state and pointing, ensuring easy monitoring and adjustment. With a sensitivity adjustment potentiometer that includes a position indicator, users can fine-tune the sensor's performance to suit specific needs. The sensors boast a reflex polarized sensitivity adjustment of up to 12m and an emitter and receiver with a maximum detecting range of 50m. They are designed to operate efficiently in challenging environments, with an operating temperature range of -25°C to +55°C and a degree of protection rated at IP67. The robust ABS housing and PMMA active head material ensure long-lasting performance, while the included mounting bracket STFG 00 facilitates easy installation. With approvals from CE and UR, and EMC compatibility with EN 60947-5-2, the Datasensing FGRS/DT-0A Sensors are a reliable choice for applications requiring high precision and resilience against external interferences, such as sunlight and HF lamps.
