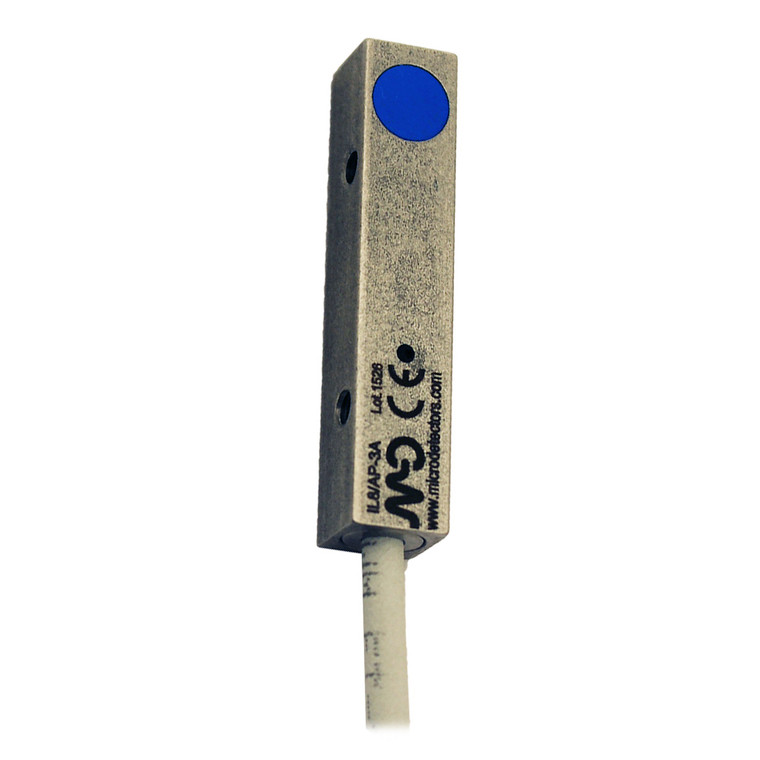

The Datasensing IL8/AN-1A Sensors are compact, cubic inductive sensors designed for precise proximity detection. With a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm, these sensors are ideal for applications requiring high accuracy. The IL8 series features an 8x8mm sensing head positioned at the top, ensuring optimal detection. Constructed with durable AISI303 stainless steel housing and a PBT active head, these sensors are built to withstand harsh environments, offering IP67 protection. They operate efficiently within a temperature range of -25°C to +70°C and are equipped with a 2m axial PUR cable for easy installation. The sensors support NPN-NO output with a switching frequency of up to 5kHz, and include features like short-circuit, reverse polarity, and impulsive overvoltage protection. The blue LED indicator provides a clear output state, while the shielded mounting ensures reliable performance. With CE and cULus approvals, these sensors meet international standards for safety and electromagnetic compatibility.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,15 / aluminium: 0,12 / brass: 0,25 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x40mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x40mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
