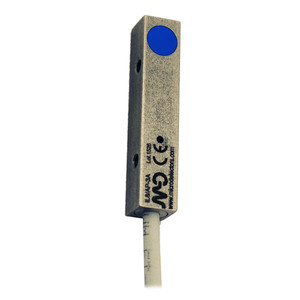

Datasensing IL8/AN-5A Sensors
Datasensing
$157.98
The Datasensing IL8/AN-5A Sensor is a compact and efficient inductive sensor designed for precise proximity detection. With a cubic 8x8 mm design and a top-mounted sensing head, it offers a nominal sensing distance of 2.5mm and operates effectively within a range of 0 to 2.02mm. This sensor is equipped with an NPN-NO output type and features a 2m axial PUR cable for easy installation. It boasts a high switching frequency of up to 5kHz and operates on a voltage range of 10 to 30Vdc, ensuring reliable performance in various applications. The sensor is constructed with durable AISI303 stainless steel housing and a PBT active head, providing robust protection against environmental factors. It is designed to withstand temperatures from -25°C to +70°C and is IP67 rated for excellent resistance to dust and water ingress. Additional features include short-circuit, reverse polarity, and impulsive overvoltage protection, making it a versatile choice for industrial environments. The blue LED indicator provides clear output state visibility, and the sensor is compliant with CE and cULus approvals, ensuring adherence to international standards.
- Nominal sensing distance:
- 2,5mm
- Operanting distance:
- 0 2,02mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,15 / aluminium: 0,12 / brass: 0,25 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x40mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x40mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
