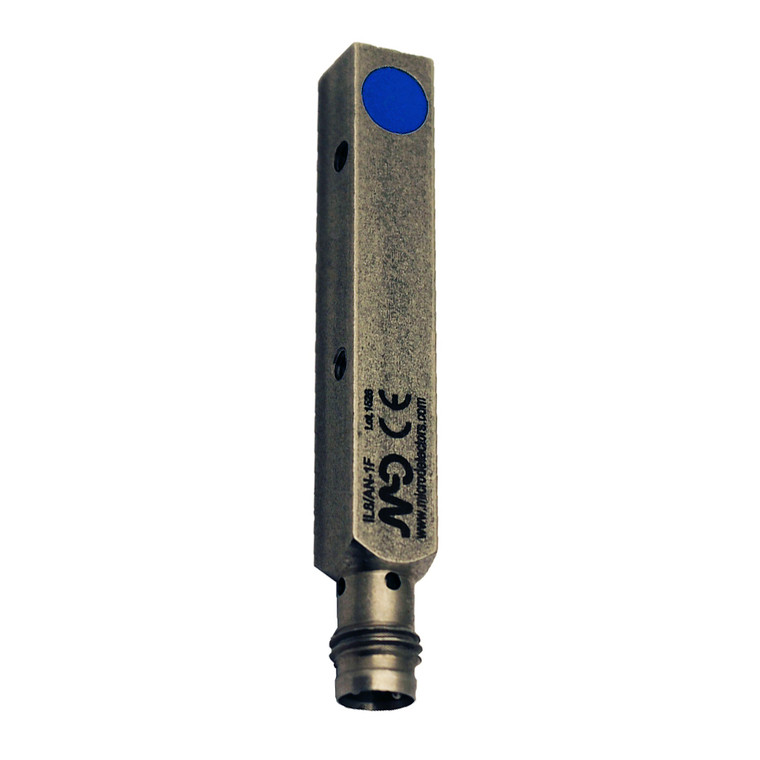

Datasensing IL8/AP-5F Sensors
Datasensing
$136.04
The Datasensing IL8/AP-5F Sensors are compact, cubic inductive sensors designed for precise proximity detection. With a nominal sensing distance of 2.5mm and an operating range of 0 to 2.02mm, these sensors are ideal for applications requiring high accuracy. The IL8 series features an 8x8mm sensing head positioned at the top, ensuring optimal detection. Constructed with durable AISI303 stainless steel housing and a PBT active head, these sensors are built to withstand harsh environments, offering IP67 protection. They operate efficiently within a temperature range of -25°C to +70°C and are equipped with a PNP-NO output type, capable of handling a load current of up to 200mA. The sensors include advanced features such as short-circuit, reverse polarity, and impulsive overvoltage protection, along with a blue LED indicator for output state. With a switching frequency of up to 5kHz and a quick time delay before availability of ? 50ms, the IL8/AP-5F sensors provide reliable performance for various industrial applications. The M8 plug connection ensures easy installation and integration into existing systems.
- Nominal sensing distance:
- 2,5mm
- Operanting distance:
- 0 2,02mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,15 / aluminium: 0,12 / brass: 0,25 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x59mm cubic flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 15g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x59mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
