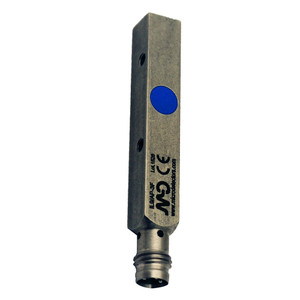

Datasensing IL9/CN-1A Sensors
Datasensing
$127.14
The Datasensing IL9/CN-1A Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an 8x8mm cubic flush mount with a centre detection head, these sensors offer a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm. Constructed with durable AISI303 stainless steel housing and a PBT active head, they ensure reliable operation in harsh environments with an IP67 protection rating. The sensors are equipped with an NPN-NC output type, capable of handling a load current of up to 200mA, and feature a blue LED indicator for output state. With a switching frequency of up to 5kHz and comprehensive protection against short-circuits, reverse polarity, and inductive loads, these sensors are ideal for industrial applications. The 2m axial PUR cable provides flexible connectivity, while the compact dimensions of 8x8x40mm make them suitable for space-constrained installations. Operating efficiently within a temperature range of -25°C to +70°C, the IL9/CN-1A sensors are CE and cULus approved, ensuring compliance with international standards.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,16 / aluminium: 0,11 / brass: 0,22 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x40mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x40mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
