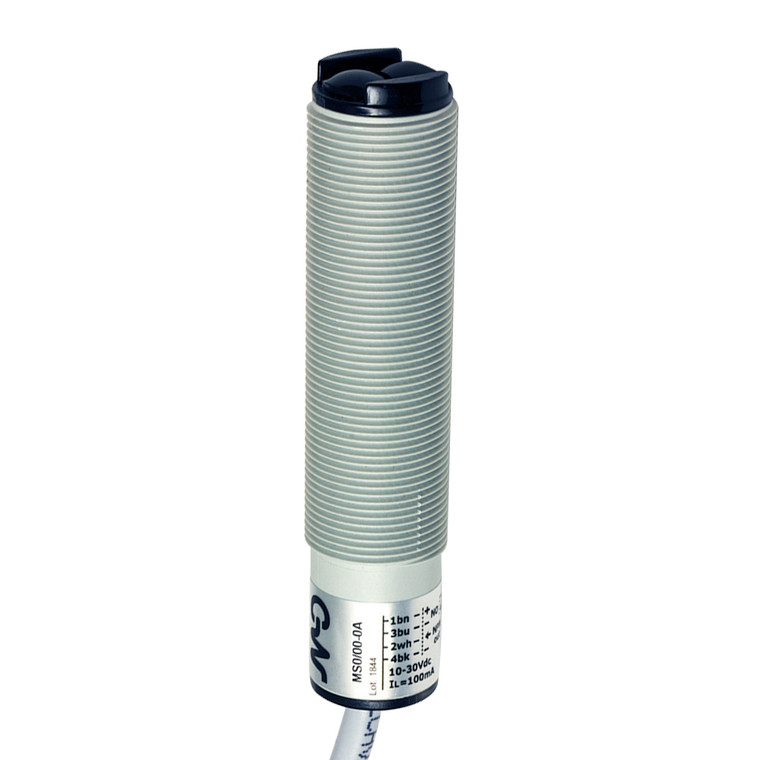

Datasensing MS0/00-0A Sensors
Datasensing
$146.94
The Datasensing MS0/00-0A Sensors are designed for precision and reliability in various industrial applications. These photoelectric sensors feature a nominal sensing distance of 50mm and utilize background suppression technology to ensure accurate detection. With a robust construction, the sensors are housed in durable PBT/PC material and are equipped with a 2m PVC cable for easy installation. The sensors offer selectable NPN/PNP output types and NO/NC output functions, providing flexibility for different operational needs.
Engineered for high performance, the sensors boast a switching frequency of 1kHz and a rapid response time of 500µs, making them suitable for fast-paced environments. They operate within a voltage range of 10 to 30VDC and are protected against electrical damage with features like short-circuit and overvoltage protection. The sensors are also equipped with LED indicators for status output, ensuring easy monitoring.
Designed to withstand challenging conditions, the sensors are IP67 rated for mechanical protection and can operate in temperatures ranging from -25°C to +70°C. They are resistant to shocks and vibrations, complying with IEC standards, and are approved with CE and cURus certifications. The sensors also include nuts for secure mounting, ensuring a reliable and stable setup. With their advanced features and robust design, the Datasensing MS0/00-0A Sensors are an ideal choice for applications requiring precise and dependable sensing solutions.
- Nominal sensing distance:
- 50mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
