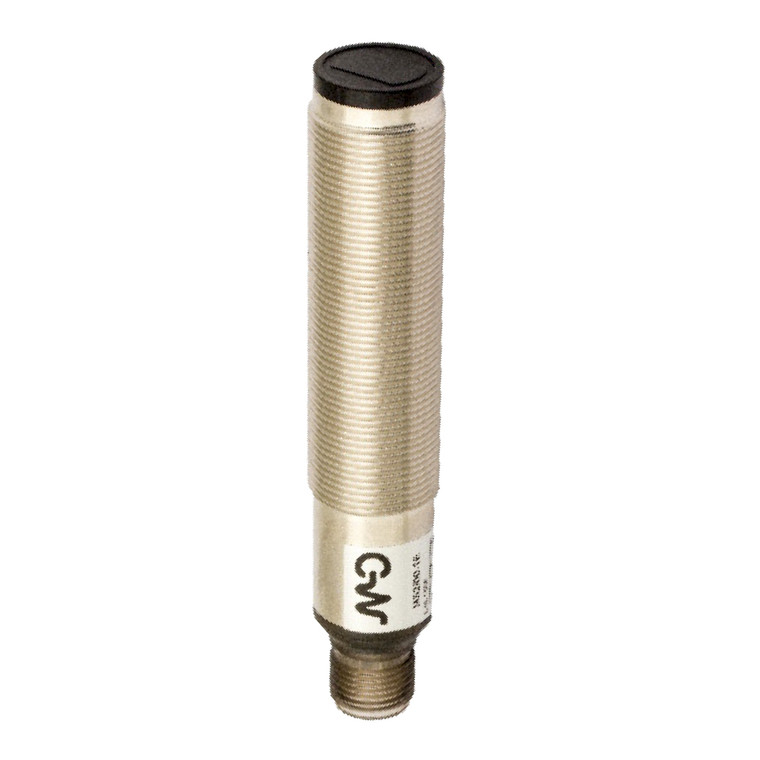

Datasensing MS4/00-1E Sensors
Datasensing
$132.38
The Datasensing MS4/00-1E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 200mm, these sensors are ideal for short-distance applications. The robust construction includes a nickel-plated brass housing and PMMA active head material, ensuring durability and resistance to harsh environments. With a wide range of models available, including diffuse, retro-reflective, polarized, through-beam detection, and background suppression, these sensors offer versatility for various industrial needs.
The through-beam models boast a high sensing range, while retro-reflective models utilize red visible polarized light for enhanced accuracy. Right angle optic models (MP) and background suppression models with fixed distance provide additional options for specific applications. All through-beam models come equipped with a check function for added reliability.
The MS4/00-1E Sensors are designed with complete protection against electrical damage, including short-circuit protection with auto-reset and overvoltage protection. They operate within a voltage range of 10 to 30VDC, with a no-load supply current of ? 40mA and a load current of ?100mA. The sensors feature a selectable output type (NPN/PNP) and output function (NO/NC), with a switching frequency of 80Hz and a response time of 6.25ms.
Additional features include LED indicators for status output, impulsive overvoltage protection, and high resistance to external light interference (3000lux incandescent lamp, 10000lux sunlight). The sensors are CE and cURus approved, with EMC compatibility per EN 60947-5-2 standards. They are designed to withstand shocks and vibrations as per IEC standards and offer mechanical protection with an IP67 rating. Supplied with M18 x 1 nuts, these sensors are ready for integration into your system.
- Nominal sensing distance:
- 200mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
