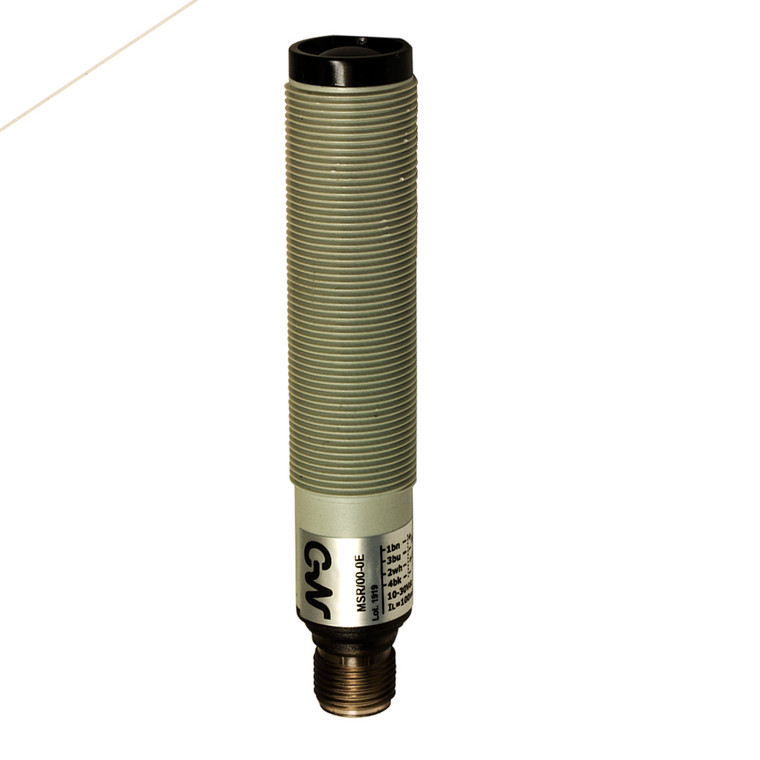

Datasensing MSD/00-0E Sensors
Datasensing
$125.63
The Datasensing MSD/00-0E Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a robust M18 receiver with a nominal sensing distance of 32 meters, these sensors are equipped with NPN/PNP selectable NO/NC output functions, ensuring versatile application compatibility. The sensors boast a high switching frequency of 30Hz and a rapid response time of 16.66ms, making them ideal for fast-paced environments. With a durable PBT/PC housing and PMMA active head material, they are built to withstand harsh conditions, offering an IP67 degree of protection. The sensors are resistant to electrical damage, thanks to their short-circuit and overvoltage protection features. They are also designed to handle interference from external light sources, withstanding up to 3000 lux from incandescent lamps and 10000 lux from sunlight. The compact design, with dimensions of M18 x 1 and a length of 93mm, ensures easy integration into various systems. Additionally, the sensors come with M12 plug connections and are supplied with M18 x 1 nuts for secure installation. Operating efficiently within a temperature range of -25°C to +70°C, these sensors are CE and cURus approved, ensuring compliance with international standards.
- Nominal sensing distance:
- 32m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 30Hz
- Response time:
- 16,66ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
