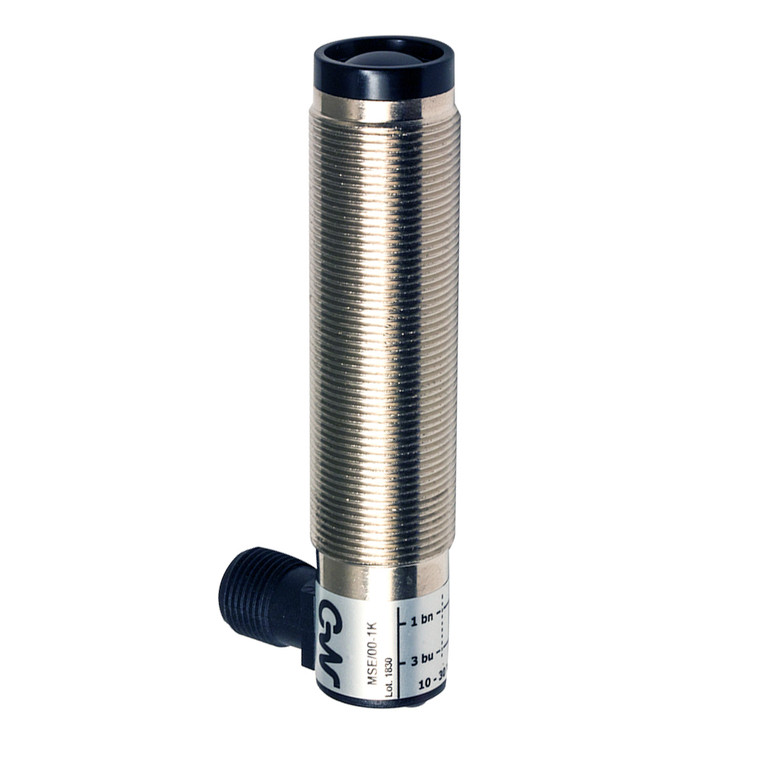

Datasensing MSR/00-1K Sensors
Datasensing
$127.82
The Datasensing MSR/00-1K Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. Featuring a robust M18 receiver with a nominal sensing distance of 16 meters, these sensors offer versatile detection capabilities, including diffuse, retro-reflective, polarized, through-beam detection, and background suppression. The through-beam models boast a high sensing range, while retro-reflective models utilize red visible polarized light for enhanced accuracy.
Equipped with a right-angle optic and a fixed distance background suppression model, these sensors ensure optimal performance in diverse environments. The MSR/00-1K Sensors are built with a durable nickel-plated brass housing and a PMMA active head, providing complete protection against electrical damage and environmental factors.
With a switching frequency of 30Hz and a response time of 16.66ms, these sensors deliver fast and reliable operation. They feature selectable NPN/PNP and NO/NC output functions, along with short-circuit and overvoltage protection for enhanced safety. The sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and an IP67 degree of protection.
Additional features include LED indicators for status output, a 90° M12 plug connection, and compliance with CE cURus and EMC compatibility standards. The Datasensing MSR/00-1K Sensors are an ideal choice for applications requiring high precision, reliability, and adaptability.
- Nominal sensing distance:
- 16m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable Decout NO/NC Selectable
- Output Function:
- Decout NO/NC Selectable
- Switching frequency:
- 30Hz
- Response time:
- 16,66ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 100g
- Housing Material:
- Nickel plated brass
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
