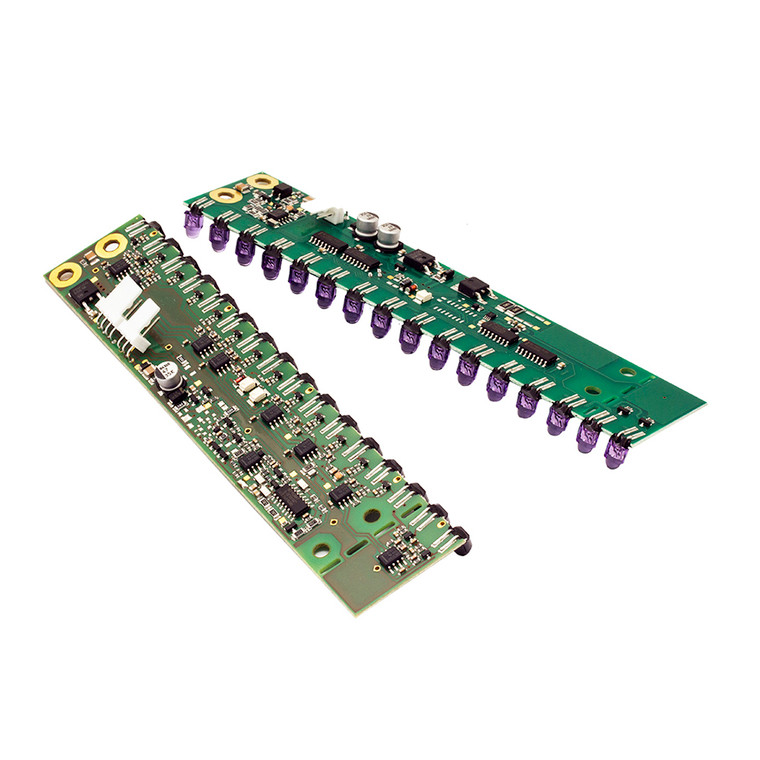

The Datasensing NX16SR/XAP-C010 Sensors are a comprehensive area sensor kit designed for precision and reliability. Featuring 16 beams with a controlled height of 150mm and a beam spacing of 10mm, this sensor kit is ideal for applications requiring accurate object detection. The sensors operate with a nominal sensing distance ranging from 0.5 to 2 meters, capable of detecting objects as small as 5mm.
Equipped with a PNP NO output function, the sensors offer a switching frequency of 130Hz, ensuring rapid response times. The no-load supply current is 150mA for the emitter and 25mA for the receiver, with a load current capacity of 100mA. The sensors maintain a low leakage current of less than 10A at 26V and an output voltage drop of ?2V at 100mA, ensuring efficient power usage.
The sensors are designed to withstand interference from external light sources, with a tolerance of up to 1000lux for incandescent light and 1500lux for sunlight. LED indicators provide clear status updates, with yellow indicating power and emission activity on the emitter, and red and yellow indicating signal level and output state on the receiver.
The kit includes PCB connectors for easy installation, with specific MOLEX connectors for both the emitter and receiver. The compact dimensions of 157x36x18 make it suitable for various installation environments. While mechanical protection is not defined, the robust design ensures durability and long-term performance.
- Nominal sensing distance:
- 0,5 2m
- Beams space:
- 10mm
- controlled height:
- 150mm
- minimum detectable object:
- Ø 5mm
- Output Function:
- NO
- Switching frequency:
- 130Hz
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
- Dimensions:
- 157x36x18
- Mechanical Protection:
- Not defined
