Datasensing PK3/00-1H Sensors
Datasensing
$87.34

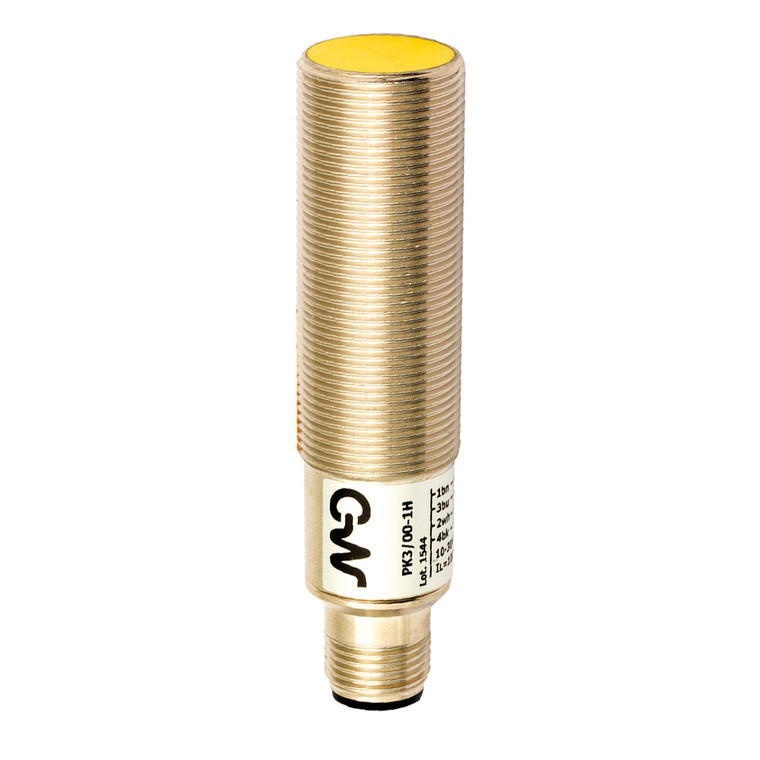

The Datasensing PK3/00-1H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a nominal sensing distance of 5mm and an operating range of 0 to 4.05mm, these sensors are ideal for proximity detection in various industrial applications. The M18 standard flush mount design ensures easy installation, while the shielded construction provides enhanced protection against environmental factors.
These sensors offer versatile output options, including NPN/PNP and NO/NC, with a switching frequency of 300Hz, making them suitable for dynamic environments. The robust nickel-plated brass housing and IP67 mechanical protection ensure durability and resistance to harsh conditions, with an operating temperature range of -25°C to +70°C.
Equipped with advanced features such as short-circuit, reverse polarity, and impulsive overvoltage protection, the PK3/00-1H Sensors guarantee reliable performance. The yellow LED indicator provides clear output state visibility, and the M12 plug connection facilitates seamless integration into existing systems.
With a compact design measuring M18 x 1 / L = 72mm and weighing just 58g, these sensors are easy to handle and install. The package includes two M18x1 nuts for secure mounting. Compliant with CE and EMC standards, the Datasensing PK3/00-1H Sensors are engineered to meet the demands of modern industrial environments, offering exceptional accuracy and repeatability.
- Nominal sensing distance:
- 5mm
- Operanting distance:
- 0 4,05mm
- Standard target:
- 18x18mm FE360
- Correction Factor:
- copper: 0,40 / aluminium: 0,48 / brass: 0,72 / stainless steel: 0,86
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN/PNP
- Output Function:
- NO/NC
- Switching frequency:
- 300Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 30mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,2V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 58g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
