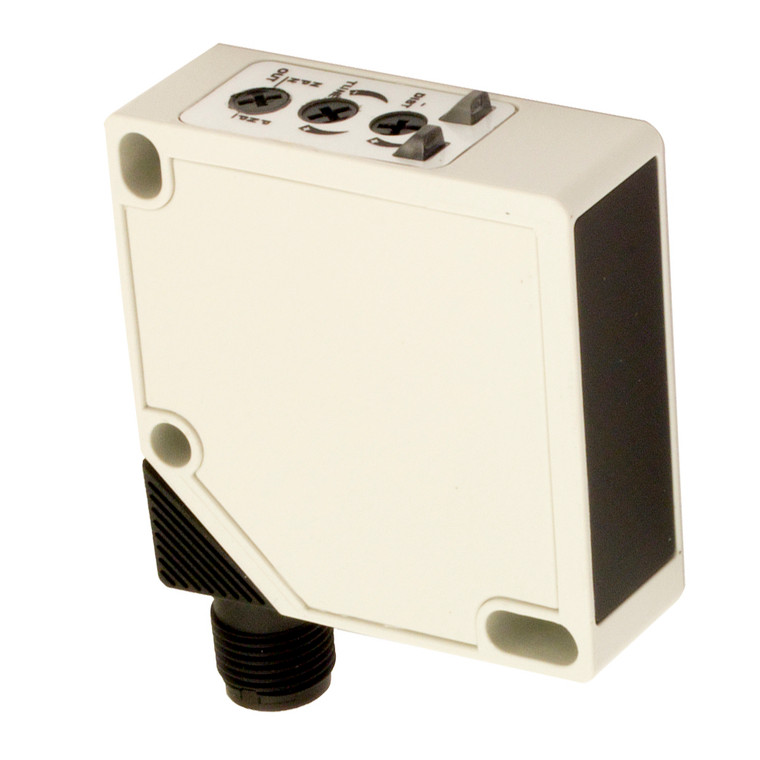

Datasensing Q50IH/00-0E Sensors
Datasensing
$90.07
The Datasensing Q50IH/00-0E Sensors are universal photoelectric sensors designed for high performance and versatility. With a compact 50x50mm cubic design, these sensors offer a wide range of optical functions, including diffuse sensing up to 2 meters, background suppression up to 500mm, polarized retro-reflective sensing up to 6 meters, and through-beam sensing up to 20 meters. The sensors feature dual multifunction output state LEDs for easy status monitoring and are equipped with NPN/PNP outputs for VDC models or SPDT relay outputs for multi-voltage VDC/VAC models.
Built to withstand harsh environments, the Q50IH/00-0E sensors are protected against electrical damages, short-circuits, and reverse polarity. They operate within a voltage range of 10 to 30VDC and have a no-load supply current of ? 50mA. The sensors are housed in durable PC/ABS material with an IP67 degree of protection, ensuring reliable performance in temperatures ranging from -20°C to +60°C.
The sensors come with a convenient M12 plug connection and include a mounting bracket for easy installation. With a nominal sensing distance of 20 meters and sensitivity adjustment via a trimmer, these sensors are ideal for a variety of industrial applications. The green LED indicator provides a clear power-on status, and the sensors are compliant with EMC compatibility standard EN 60947-5-2, ensuring they meet rigorous industry standards for electromagnetic compatibility.
- Nominal sensing distance:
- 20m
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter
- Optic position:
- Axial
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 50mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (850nm)
- Dimensions:
- 50X50mm
- Weight:
- 105g
- Housing Material:
- PC/ABS
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 20°C + 60°C ( UL omologation 0°C 60°C)
- Material:
- PC/ABS
- Diameter/Dimension:
- Cubic
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-60
- Degree of protection:
- IP67
- Supplied Accessories:
- Mounting bracket
- Dimensions:
- 50x50x17mm
- Operating Temperature:
- - 20°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
