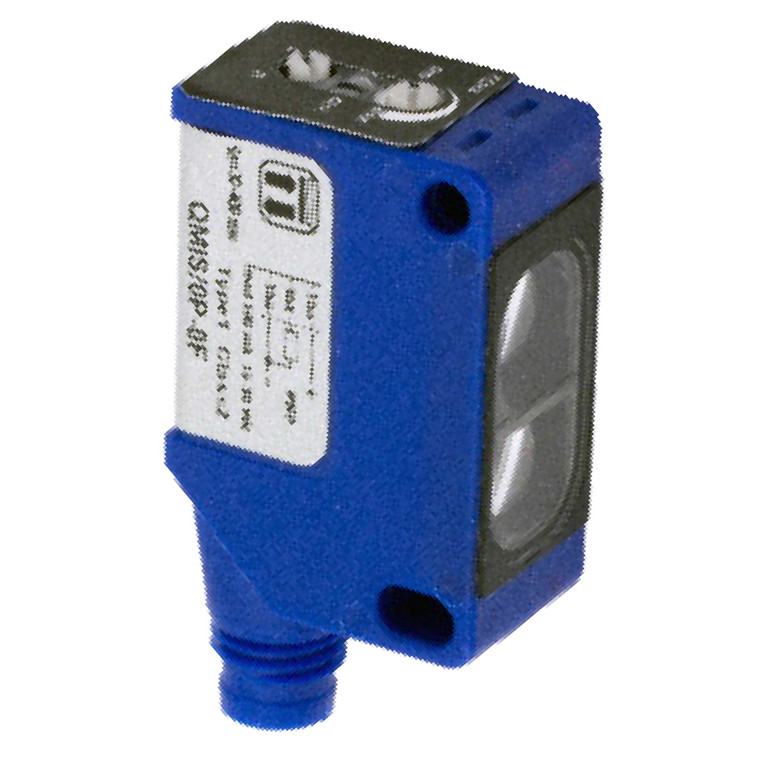

Datasensing QMR8/0P-0F Sensors
Datasensing
$129.40
The Datasensing QMR8/0P-0F Sensors are compact, high-performance photoelectric sensors designed for precise detection tasks. Featuring a nominal sensing distance of 1 meter, these sensors utilize a diffuse reflection principle for long-distance detection, making them ideal for applications requiring reliable performance over extended ranges. The sensors are equipped with a PNP output type that is L/D selectable, allowing for versatile integration into various systems.
With a robust design, the QMR8/0P-0F sensors offer a repeat accuracy of 5% and a sensitivity adjustment via a trimmer, ensuring adaptability to different operational environments. The sensors are housed in durable PA66 material with an active head made of PMMA, providing excellent mechanical protection rated at IP67. They are capable of withstanding harsh conditions, with an operating temperature range of -25°C to +70°C and storage temperatures from -30°C to +80°C.
The sensors feature LED indicators for status output and stability, ensuring easy monitoring and maintenance. They are protected against short-circuits, reverse polarity, and impulsive overvoltage, enhancing their reliability and longevity. The QMR8/0P-0F sensors are compliant with CE and cULus approvals and meet EMC compatibility standards EN 60947-5-2, ensuring they meet rigorous safety and performance standards. With a compact cubic design measuring 40.6x21x13mm and an M8 plug 4-pin connection, these sensors are easy to install and integrate into existing systems.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm
- Optic position:
- Radial 90°
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), green (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (630nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- PA66
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Storage temperature:
- - 30°C + 80° C (Without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Dimensions:
- 40,6x21x13mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
