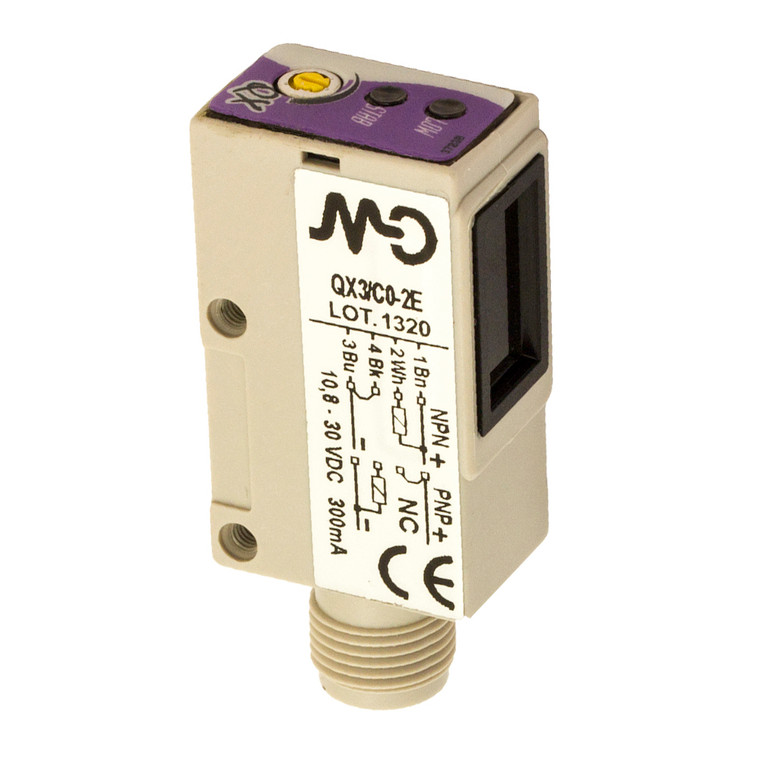

Datasensing QXC/C0-2E Sensors
Datasensing
$192.54
The Datasensing QXC/C0-2E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a retroreflective function with a nominal sensing distance of 5 meters, these sensors are equipped with axial and right-angle optics for versatile application. The sensors boast a fast response time of 666µs and a high switching frequency of 750Hz, ensuring quick and accurate detection. With NPN-PNP selectable output and a high output current capability of over 300mA, these sensors are adaptable to various industrial needs.
The QXC/C0-2E Sensors are built with robust materials, including an ABS housing and an acrylic active head, providing durability in challenging environments. They are designed to operate efficiently within a temperature range of -25°C to +70°C, without freezing, and offer protection against short circuits and reverse polarity. The sensors are equipped with LED indicators for output status and stability, enhancing user convenience.
With a compact cubic design measuring 15x23x40mm and weighing just 70g, these sensors are easy to install using the supplied ST70 mounting brackets and screws. The M12 plug connection ensures secure and reliable connectivity. The sensors are CE approved and comply with EMC compatibility standards EN 60947-5-2, offering peace of mind with their high degree of protection rated at IP65. Ideal for applications requiring precision beam and long-distance capability, the Datasensing QXC/C0-2E Sensors are a reliable choice for modern industrial environments.
- Nominal sensing distance:
- 5m
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retro-reflector
- Optic position:
- Radial 90°
- Output type:
- NPN/PNP Selectable NC
- Output Function:
- NC
- Switching frequency:
- 750Hz
- Response time:
- 666µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?300mA
- Leakage current:
- ? 100?A @ 30Vdc
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red(output status) , Geen (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Dimensions:
- 15x23x62
- Weight:
- 70g
- Connections:
- M12 plug
- Active Head Material:
- Acrylic
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Material:
- ABS
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST70 mounting brakets and screws
- Dimensions:
- 15x23x40
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
