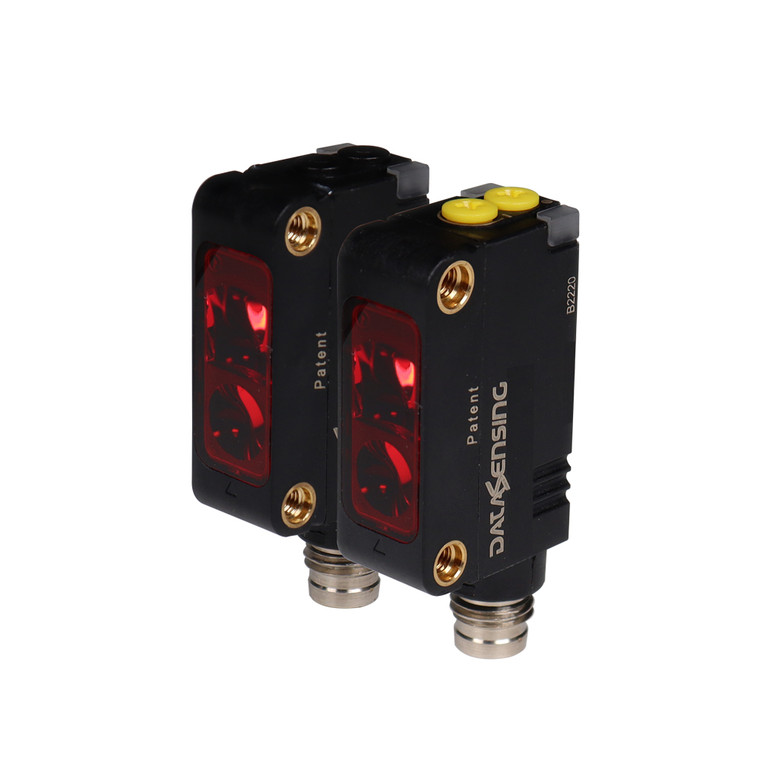

Datasensing Red Laser emission Through Beam Transmitter and receiver double trimmer Adj + L/D NPN Connector M8 4P
Datasensing
$157.82
The Datasensing Red Laser Emission Through Beam Transmitter and Receiver is a high-performance sensor designed for precise object detection and distance measurement. Featuring a visible and bright red laser emission, this device offers exceptional accuracy with a nominal sensing distance of up to 30 meters. It is equipped with a double trimmer for sensitivity adjustment, allowing for fine-tuning to suit various applications. The sensor operates on a through-beam principle, with an NPN L/D selectable output type, ensuring reliable performance in diverse environments.
Built with a rugged IP67-rated plastic miniature case, the sensor is designed to withstand harsh conditions, offering protection against dust and water ingress. The device includes state-of-the-art IO-Link connectivity, enabling extended smart tasks and seamless integration into automated systems. With a switching frequency of 2kHz and an operating voltage range of 10 to 30VDC, it delivers fast and efficient operation.
The sensor is equipped with LED indicators for easy status monitoring, including a yellow output LED and a green power-on LED. It also features short-circuit and reverse polarity protection, ensuring safe and reliable operation. The housing is made from a durable plastic polymer fiber glass reinforced material, with a PMMA active head for enhanced performance.
Ideal for applications requiring precise detection of shiny and clear objects, the sensor offers multiple background suppression functions and can detect objects at a diffuse proximity of up to 100 cm. It is compatible with M8 connectors and comes with a 2-meter cable for flexible installation. With approvals from CE, cULus, and CDRH 1, this sensor meets stringent safety and quality standards, making it a reliable choice for industrial automation and control systems.
- Nominal sensing distance:
- 30m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Through beam emitter and receiver
- Notes:
- (class 1 LASER)
- Optic position:
- Radial 90°
- Functions:
- Through beam emitter and receiver
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green POWER ON LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus CDRH 1
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
