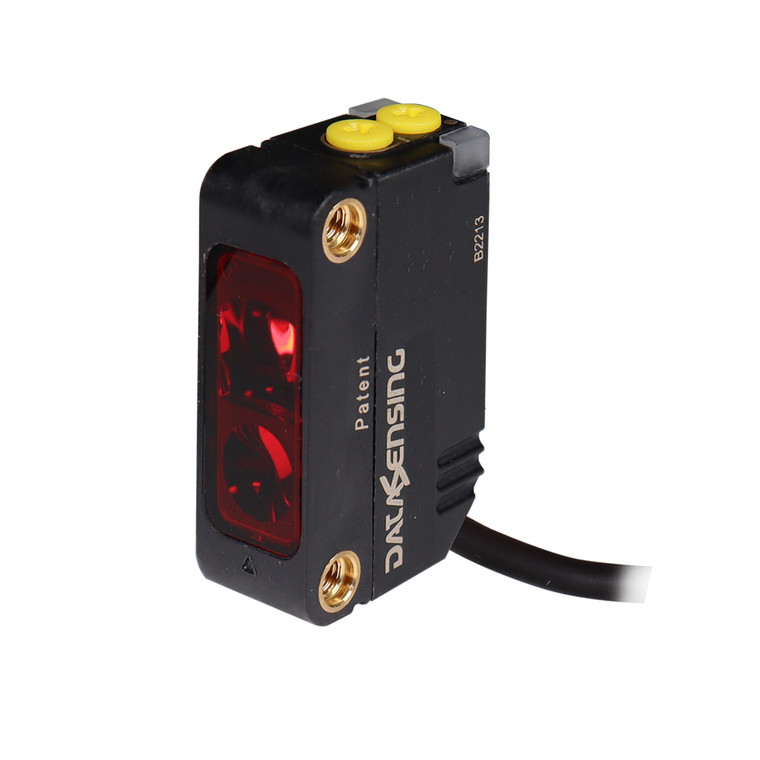

Datasensing Red Laser emissionBackground Suppressor double trimmer Adj + L/D NPN Cable
Datasensing
$139.76
The Datasensing Red Laser Emission Background Suppressor is a versatile and high-performance sensor designed for precise object detection and background suppression. Featuring a bright red laser emission, this sensor is equipped with multiple background suppression functions, making it ideal for detecting shiny and clear objects. It offers a diffuse proximity range of up to 100 cm and background suppression up to 800 mm with the LED trimmer version. The sensor also supports polarized RRX detection at distances of 7 m with red LED emission and 12 m with red laser emission, as well as through-beam detection up to 30 m.
Housed in a rugged IP67 plastic miniature case, the sensor is built to withstand harsh environments. It features M3 threaded holes with metal inserts for secure mounting and offers state-of-the-art IO-Link connectivity with extended Smart Tasks for enhanced functionality. The sensor's nominal sensing distance is 600 mm, with a sensitivity adjustment via a 1-turn trimmer. It operates on a voltage range of 10 to 30 VDC and includes short-circuit and reverse polarity protection for reliable performance.
The sensor's output type is NPN with L/D selectable functions, and it boasts a high switching frequency of 1.5 kHz and a fast response time of 333 µs. It is equipped with yellow output and green power-on LED indicators for easy status monitoring. The housing is made from a durable plastic polymer reinforced with fiberglass, and the active head is constructed from PMMA. With approvals from CE, cULus, and CDRH 1, and EMC compatibility with EN 60947-5-2, this sensor is a reliable choice for a wide range of industrial applications.
- Nominal sensing distance:
- 600mm
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Blackground suppression
- Notes:
- (class 1 LASER) white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Functions:
- Background suppression
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1,5kHz
- Response time:
- 333µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green POWER ON LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus CDRH 1
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
