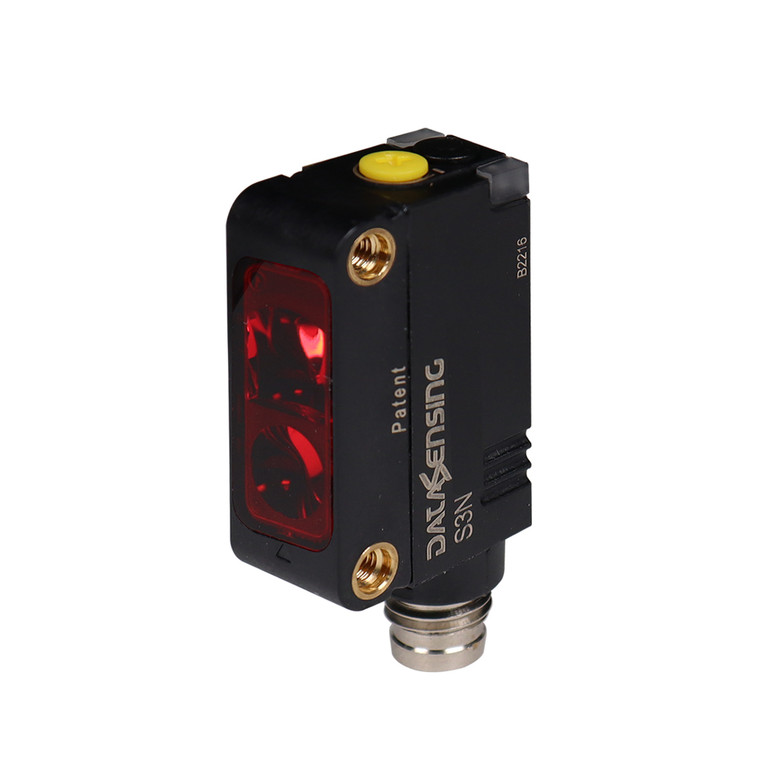

Datasensing Red LED emission Background Suppressor single trimmer Light Output NPN Connector M8 4P
Datasensing
$101.54
The Datasensing Red LED Emission Background Suppressor is a highly efficient sensor designed for precise object detection and background suppression. Featuring a bright red LED emission, this model offers multiple background suppression functions, making it ideal for detecting shiny and clear objects. It comes with a single trimmer for light output adjustment and an NPN connector with an M8 4P configuration for easy integration.
This sensor boasts a diffuse proximity range of up to 100 cm and background suppression capabilities up to 800 mm, ensuring reliable performance in various applications. The rugged IP67 plastic miniature case, reinforced with fiber glass, provides durability and protection against harsh environments. The sensor is equipped with state-of-the-art IO-Link connectivity, allowing for extended smart tasks and seamless communication.
With a nominal sensing distance of 800 mm and a sensitivity adjustment via a 1-turn trimmer, this sensor is designed for precision. It operates on a voltage range of 10 to 30 VDC, with a low no-load supply current of ? 35mA. The sensor features short-circuit and reverse polarity protection, ensuring safe and reliable operation. LED indicators provide clear status updates, with a yellow output LED and a green power-on LED.
The sensor's compact cubic design, with dimensions of 11x31x19 mm, allows for easy installation in tight spaces. It is approved by CE and cULus, and complies with EMC compatibility standards EN 60947-5-2. With its robust construction and advanced features, the Datasensing Red LED Emission Background Suppressor is an excellent choice for applications requiring precise and reliable object detection.
- Nominal sensing distance:
- 800mm
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Functions:
- Background suppression
- Output type:
- NPN Lon
- Output Function:
- Lon
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green POWER ON LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
